Readylift - 2005-18 TOY TACOMA Toyota Tacoma TRD/SR5 3.0'' F with 1.0'' R SST Lift Kit - 69-5112

• About Product
• About the Brand
• Vehicle Fitment

Additional Details

Tacoma Max Lift: 3.0F/1.0R - Max Tire Dia: 32.5

3 inch SST Lift Kit.

2005-2022 2WD/4WD 6-lug TRD - SR5 - Rock Warrior

Includes Sway Bar Drop Brackets

SST Lift Kits from ReadyLIFT, the leader in suspension leveling and lift systems, are the most economical and safe method of altering vehicle ride height, which also allows the consumer to upgrade his tires to a preferred larger size. Nothing looks better than a truck fit with an aggressive stance and that is exactly what ReadyLIFT Smart Suspension Technology (SST) provides! ReadyLIFT has used their proven technological engineering methods to produce an SST Suspension Lift System for the 2005-2022 Six-Lug Toyota Tacoma TRD / SR5 / Rock Warrior / Prerunner trucks (P/N 69-5112) that lifts the truck 2.75-3.0 and includes a new tapered 1.0 rear lift block for Toyota Tacoma TRD / SR5 / Rock Warrior / Prerunner trucks. The intermediate Smart Strut Technology system fits all 2005-2020 Tacoma and Prerunner models including both 2WD and 4WD models. This kit provides the owner with the opportunity to upgrade to larger wheel and tire combinations up to 33 in diameter while retaining the great stock ride and handling characteristics. 32.5 tire diameter is recommended. In order to fit 33 tires you will have to do some minor trimming of the inner fender well. This kit also includes sway bar drop brackets.

NOTE: FOR 2016-2022 MODEL TACOMA'S UNTIL FURTHER NOTICE. Some 2016-22 Tacoma's may experience a deceleration vibration. If your truck has the Crawl Feature transfer case and only has a 1 stock rake between front and rear, you can use the kit but do not use the differential drop spacers.

NOTE: Our objective is to have your truck sit level or slightly below level. Each truck is different so the amount of lift achieved may vary between 2.75 and 3.0 in the front. TRD-equipped trucks often have less rake compared to a non-TRD truck. Measurements on some customer's trucks have revealed as much as 1.0 difference in the factory front end height. Some earlier model Tacoma trucks came factory with a 2 leaf plus overload rear spring pack that had sagging issues. Toyota is replacing these packs with a 3+1 rear leaf pack. Trucks with 2+1 packs will want to take advantage of this new lift system that includes a 1.0 rear lift block for a complete lift wall the way around and a stance which will give approximately a 0.5 rear to front rake.

NOTE: In some Tacoma applications Toyota made minor changes to the Tacoma upper control arm suspension geometry. In some cases adding a leveling kit MAY affect the ability to correct the caster alignment to within factory specifications. If you have a 2011-2022 Tacoma with a leveling kit and the caster alignment specs cannot be put back to factory your truck will require an aftermarket Upper Control Arm with adjustable caster/camber.

33 Maximum tire diameter

33x11.50 for no rub on a 9 wide wheel with +0 offset

18 - 295/65R18

20 - 285/60R20

22 - 285/50R22

SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner’s manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.

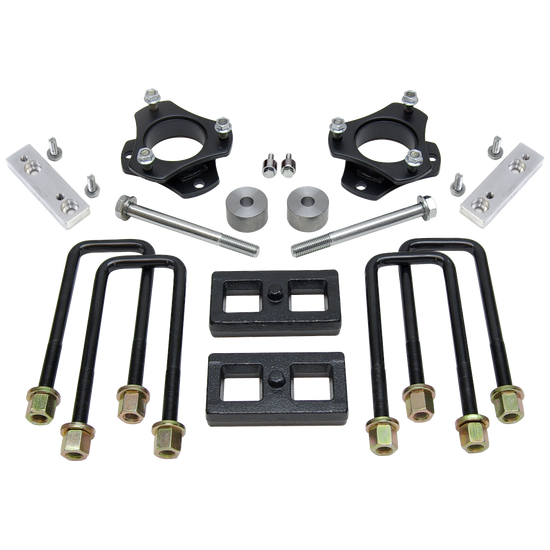

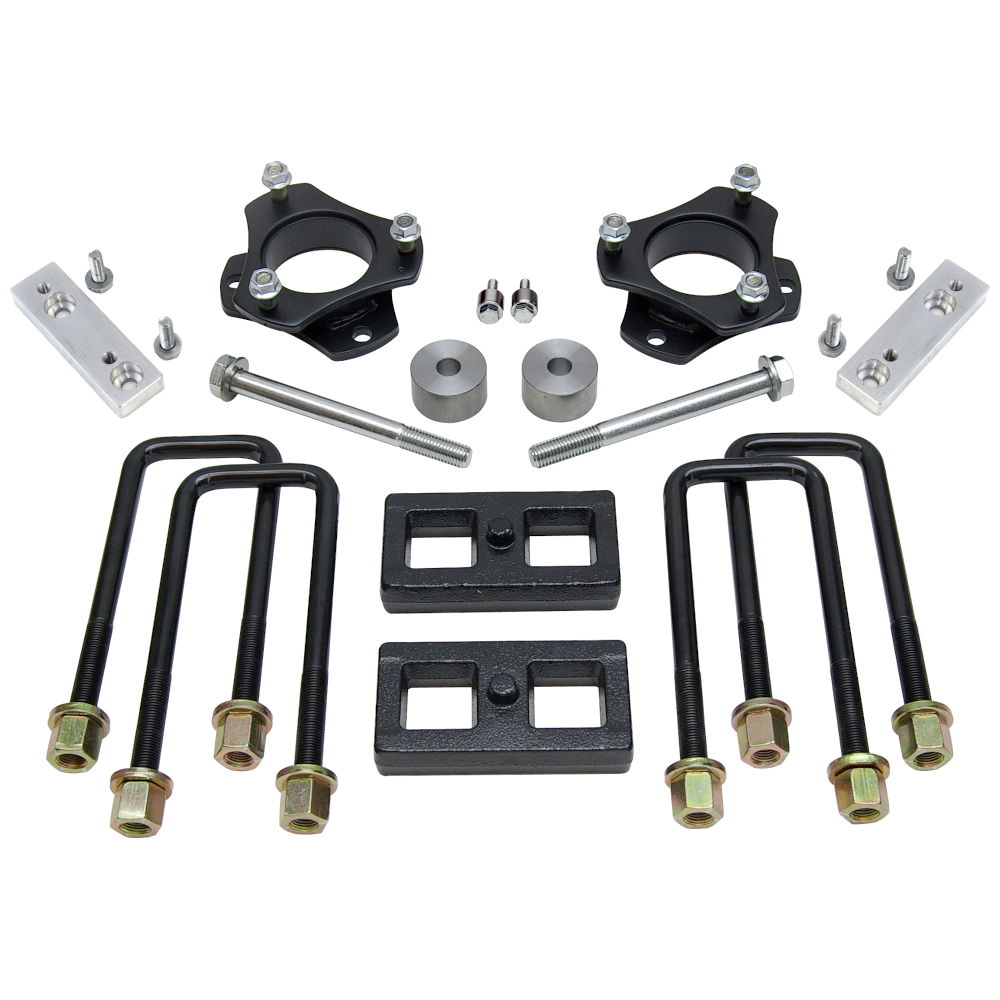

One pair of fabricated steel top mount strut extensions

One pair of OEM style cast iron rear lift blocks with longer u-bolts.

Sway bar mount spacers.

Differential drop spacers.

Skid plate spacers.

All necessary hardware.

Suspension components are key to making sure you car is riding smoothly on or off the road. With upgraded suspension components, you can unlock the full potential of your vehicles performance.

ReadyLIFT® Suspension Inc. was founded in 2006 on the principals of developing a line of economical yet innovative suspension leveling products that would allow Truck and SUV owners to be able to “level” their vehicle in order to install Plus-size wheels and tires. ReadyLIFT realized that there was a huge consumer market that didn’t want a big lift kit that would compromise fuel economy along with the factory ride and handling. The original ReadyLIFT line of suspension products was developed to provide consumers with a cost-effective alternative for their needs, essentially designing the exact product they were looking for – clearance for bigger wheels and tires, an improved ‘leveled’ stance, and that “factory” ride & handling.
