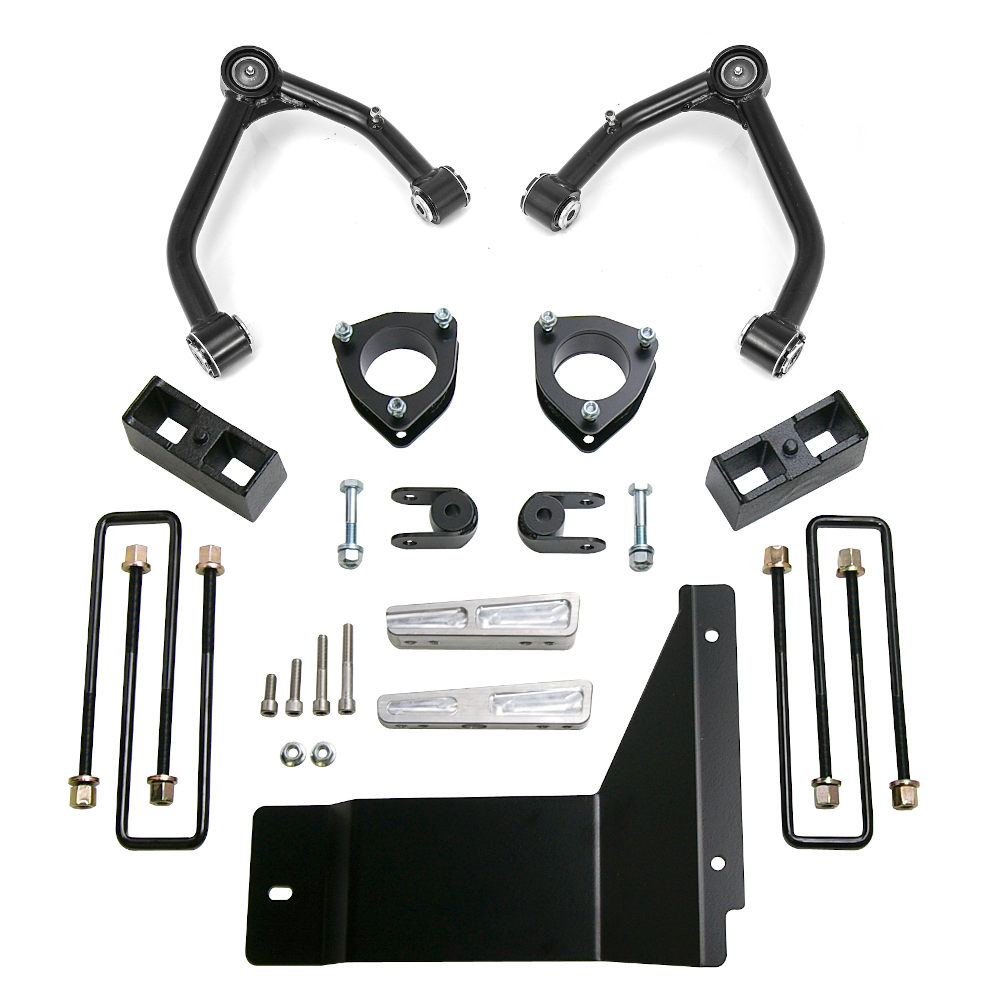

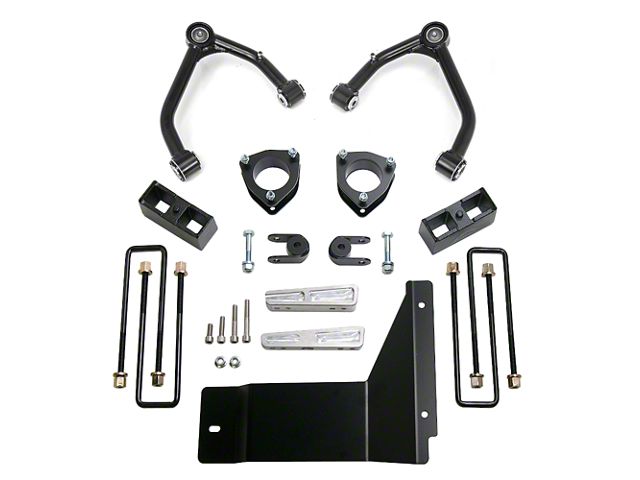

Readylift - 2007-13 CHEV/GMC 1500 4'' Front with 1.75'' Rear SST Lift Kit - Cast Steel UCA - 69-3485

• About Product
• About the Brand
• Vehicle Fitment

Additional Details

*New Improved UCA Assembly - Includes new Heavy Duty ball joints.

Max Lift - 4.0F/1.75R - Max Tire: 33.

Not for use on 2014 GM 1500 trucks.

Does Not Work With AWD Denali Trucks.

Will NOT work with 2013-UP Z71 4WD trucks with Rancho front struts

Solid Mount and even load distribution

Press in 10.9 grade Hardware

OEM Style Cast Blocks

Will not deform or change shape

No Cutting of OEM Parts or Welding

Maintains Factory Ride

If it needs it… Its in the box...

New - now includes ultra strong TCT free floating pivot bushings that are self lubricating and eliminates friction.

ReadyLIFT is proud to offer an SST Lift Kit system for the 2007-2013 1500-series Silverado/Sierra 6-lug 4WD Trucks.The 69-3485 4.0 SST Lift Kit is the result of over six months of extensive product development followed by rigorous on and off road testing. This system significantly increases ground clearance while allowing for tire sizes up to 33 on aftermarket wheels. The most common tire size for this application is 33x11.50. 22x9.5 with 5.5 backspacing requires no fender modifications. 17x9 +0 offset on a 285/70R17 will fit with no rubbing. With a 295/70r17 minor trimming/modification required. Note: This kit is designed to be used with aftermarket wheels. The ReadyLIFT 4.0 SST Lift Kit will raise the 2007-2013 Silverado/Sierra 1500 4WD trucks 4.0 in front thanks to tough trail-proven 4.0 powder coated steel strut extensions that bolt directly to the top of the factory strut. Unlike some kits which require you to cut off your strut studs or break the top hat seal which is irreversible modifications, our rugged strut extensions require no modifications to be made to the strut in order to install the extension. This guarantees the strut will maintain the factory integrity as well as drastically reducing installation time.

Two key products were developed to make achieving 4 of lift without modifications a possibly. At the heart of the system is our 100% DOM tubular Upper Control Arm. This new heavy-duty control arm features OEM-style ball joints pre-pressed into a strong crown that retains OEM geometry throughout the suspension cycle and doesn't require any modifications to the spindle. That means no drilling or machining to make the ball joints fit the spindle. The second important product that makes this kit possible is our Patent Pending CNC-machined 6061-T6 billet Aluminum differential drop brackets. When raising the front suspension 4.0, the differential must be lowered to maintain front axle and CV angles. ReadyLIFT has engineered a differential drop system that cuts installation time in half compared to other similar kits. Unlike other differential drop brackets made from steel plate that bend and can cause CV failure, our CNC-machined brackets cannot ever bend, break or cause any driveline problems when using 4WD mode. That is guaranteed! Accompanying our patent pending differential drop brackets is a thick powder coated plate steel skid plate that utilizes the factory attachment locations for ease of installation while providing tough differential protection on rough terrain. To lift the rear of the Silverado/Sierra pickups this lift system includes 3.0 OEM-style cast iron rear lift blocks and u-bolts. Our 3.0 rear lift blocks include the correct pinion angle correction and axle locating ears for perfect fit and performance. This block replaces the factory 1.25 rear block for an increase of 1.75 which will provide approximately 0.5 of rear to front rake. A slight rake is helpful for towing or hauling.

Completing this great new lift system is a set of steel rear shock extensions. No need to replace your great-riding factory rear shocks with inferior aftermarket shocks. These new shock extension brackets keep the rear shocks in the factory mounting position which means your truck will ride great! And that's important! Like all ReadyLIFT products, the 69-3485 SST Lift Kit System is protected by our Limited Lifetime Warranty.

NOTE: The ReadyLIFT 4 SST Lift Kit is designed for use with Aftermarket Wheels with a backspacing of 5.25. If you intend to run the stock wheels with an aftermarket larger tire, a wheel spacer is required to prevent the tire from touching the control arm at full locked turn. ReadyLIFT has developed a CNC-machined billet Aluminum wheel spacer 10-3485 for use with factory wheels which have the stud pockets cast into the wheel next to the lug holes on the back side of the wheel. To run the OE/Factory wheels AND tires, you will need to use the ReadyLIFT 1/2 Billet Wheel Spacers for use with OE/Factory wheels and tires.

NOTE: Does Not Work With AWD Denali Trucks

NOTE: Does NOT work with 2013 Z71 4WD trucks with Rancho front struts. For all 2007-2011 Z71's it is imperative that installer measure vehicle prior to purchase. There must be a 2.25 to 2.5 difference between the front and the rear.

NOTE: Not designed for off-road use.

33 Maximum tire diameter

33x11.50 for no rub on a 9 wide wheel with +6 offset

18 - 295/65R18

20 - 285/60R20

22 - 285/50R22

SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner’s manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.

Suspension components are key to making sure you car is riding smoothly on or off the road. With upgraded suspension components, you can unlock the full potential of your vehicles performance.

ReadyLIFT® Suspension Inc. was founded in 2006 on the principals of developing a line of economical yet innovative suspension leveling products that would allow Truck and SUV owners to be able to “level” their vehicle in order to install Plus-size wheels and tires. ReadyLIFT realized that there was a huge consumer market that didn’t want a big lift kit that would compromise fuel economy along with the factory ride and handling. The original ReadyLIFT line of suspension products was developed to provide consumers with a cost-effective alternative for their needs, essentially designing the exact product they were looking for – clearance for bigger wheels and tires, an improved ‘leveled’ stance, and that “factory” ride & handling.

• 2012 GMC Sierra 1500 Denali
• 2010 GMC Sierra 1500 Denali
• 2008 GMC Sierra 1500 Denali
• 2009 GMC Sierra 1500 Denali
• 2007 GMC Sierra 1500 Denali
