Readylift - 2011-18 CHEV/GMC 2500/3500HD 3.5'' Front with 2.0'' Rear SST Lift Kit - 69-3522

• About Product
• About the Brand
• Vehicle Fitment

Additional Details

2011-UP GM 3500 HD 3.5 Tubular Arm SST Lift Kit.

Max Lift: 3.5F-2.0R

Max Tire: 34

NOTE: Single Rear Wheel with Tow Package Springs or Dual Rear Wheels ONLY.  NOT FOR USE ON VEHICLES EQUIPPED WITH TOP MOUNTED OVERLOAD leaf springs.

Includes SST3000 Shocks

Includes 2.0 Rear Lift Block for towing applications

2011-UP GM HD 3.5 Tubular Arm SST Lift Kit w/o shocks..

Forged Torsion Keys w shock extensions

Will not deform or change shape

No Cutting of OEM Parts or Welding

Maintains Factory Ride

If it needs it… Its in the box.

ReadyLIFT Suspension is excited to offer 2011-2019 Chevy and GMC 3500HD truck owners a lift solution that won't break the bank nor permanently modify your truck. This is a true bolt-on Lift kit! The 69-3522 SST Lift Kit by ReadyLIFT takes our 69-3521 kit one step further by creating a Tow Package kit that includes a 2.0 rear lift block to provide additional rake for towing and hauling. This kit will lift the front of your new HD truck a maximum of 3.5 inches! This kit is for use on 2011-2018 3500HD trucks WITH Single Rear Wheels and Factory Tow Package Leaf Springs OR Dually Rear Wheels.  NOTE:  This kit is not compatible with trucks equipped with top-mounted overload springs.

This awesome new SST Lift Kit for new Chevy Silverado 3500HD trucks includes a pair of tough heavy-duty tubular steel upper Control Arms engineered to match the strength of your truck. 2011-2019 3500HD-specific lift-oriented ReadyLIFT forged torsion keys provide an adjustable lift while maintaining the factory ride. These super strong forged torsion keys are stronger than stock with the same design and features an indexing that is unique to this kit! The Lift Kit also includes CNC-machined differential drop spacers which lowers the differential and puts the front CV axles into safe factory angle on 4WD trucks. 2WD trucks will not use the diff spacers. To lift the rear of your new Chevy Silverado 3500HD truck, the ReadyLIFT SST Lift Kit includes OEM style 2.0 cast iron rear lift blocks complete with new U-bolts and hardware. This is our Tow Package version of this kit. This Kit Includes SST3000 Performance Shocks

Also included with this kit are new super strong tie-rod end assemblies to replace the weak factory versions. For the longest time, GM tie rod assemblies have been a weak link on all GM trucks. These heavy duty steering assemblies install easily and incredibly stronger than the OEM units. You won't find this kind of attention to detail with any other lift kit for the new GM HD trucks! This great combination gives the new 2011-2018 GM HD trucks a great raised stance using super strong components and allows for up to a 34-inch tall tire.

34 Maximum tire diameter

34x11.50 for no rub on a 9 wide wheel with +12 offset

18 - 295/70R18

20 - 275/65R20

22 - 285/55R22

SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner’s manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.

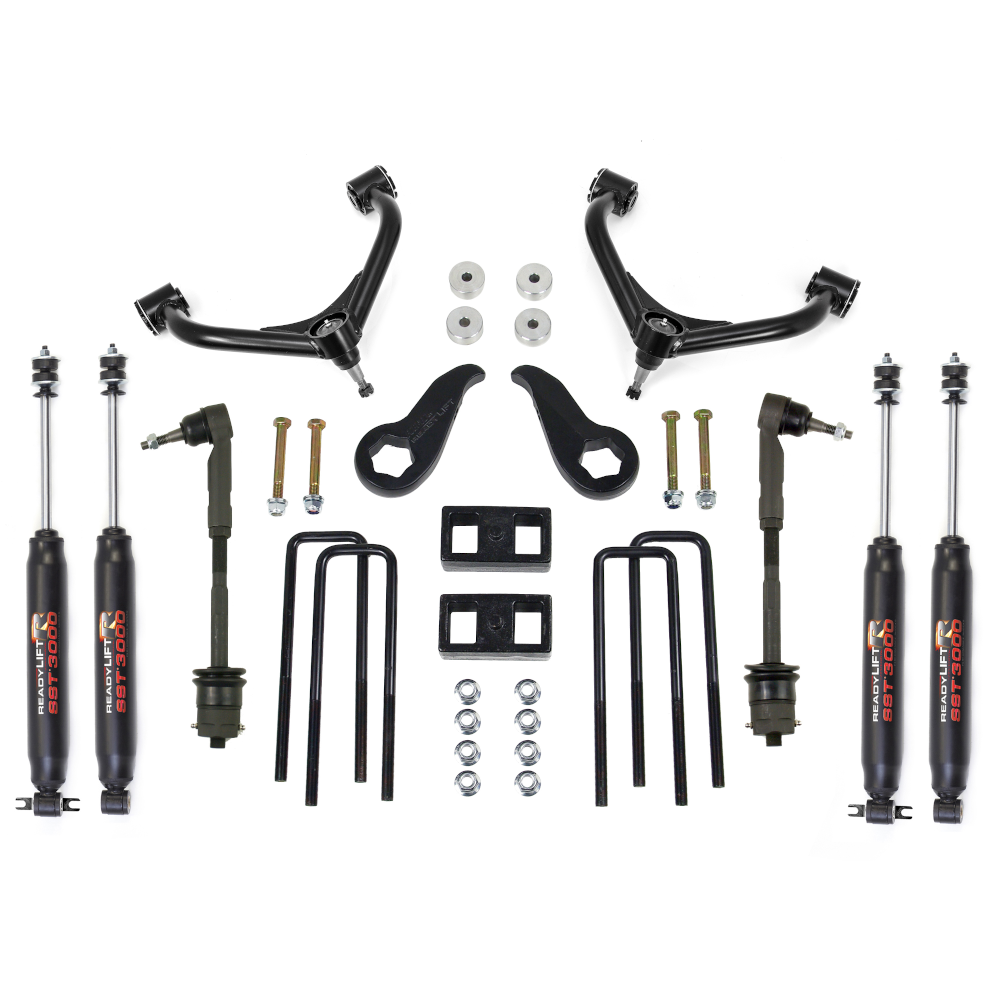

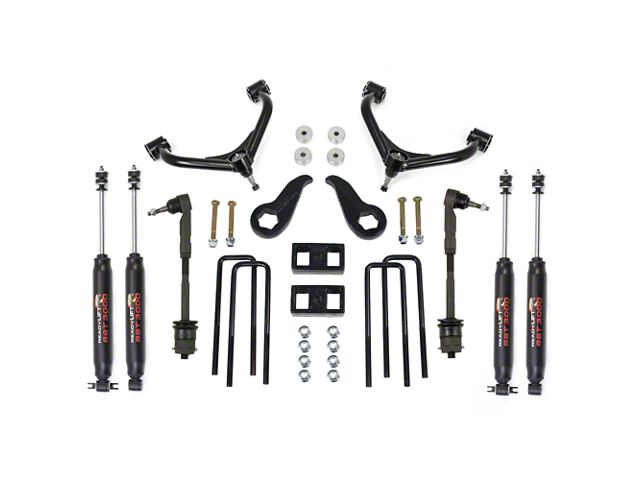

Tubular Upper Control Arms

Forged Torsion Keys indexed for 3.5 of lift.

Heavy Duty replacement tie rod assemblies

Differential drop spacers

2.0 OEM style cast iron rear lift blocks with longer u-bolts.

Includes SST3000 Shocks.

Suspension components are key to making sure you car is riding smoothly on or off the road. With upgraded suspension components, you can unlock the full potential of your vehicles performance.

ReadyLIFT® Suspension Inc. was founded in 2006 on the principals of developing a line of economical yet innovative suspension leveling products that would allow Truck and SUV owners to be able to “level” their vehicle in order to install Plus-size wheels and tires. ReadyLIFT realized that there was a huge consumer market that didn’t want a big lift kit that would compromise fuel economy along with the factory ride and handling. The original ReadyLIFT line of suspension products was developed to provide consumers with a cost-effective alternative for their needs, essentially designing the exact product they were looking for – clearance for bigger wheels and tires, an improved ‘leveled’ stance, and that “factory” ride & handling.

• 2011 Chevrolet Silverado 3500 HD WT
• 2011 GMC Sierra 3500 HD Denali
• 2012 GMC Sierra 3500 HD Denali
• 2015 GMC Sierra 3500 HD SLE
