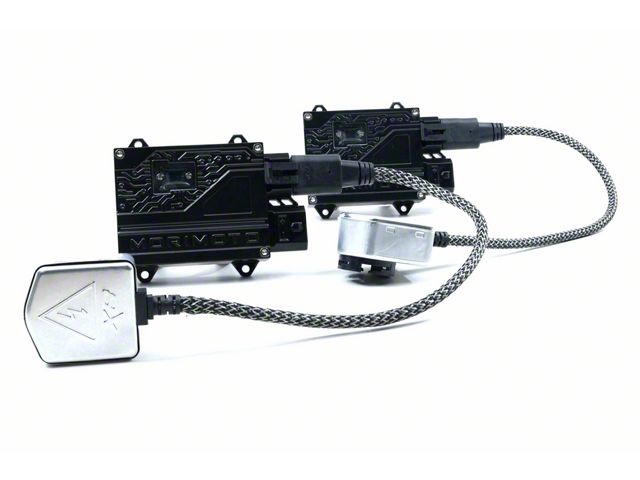

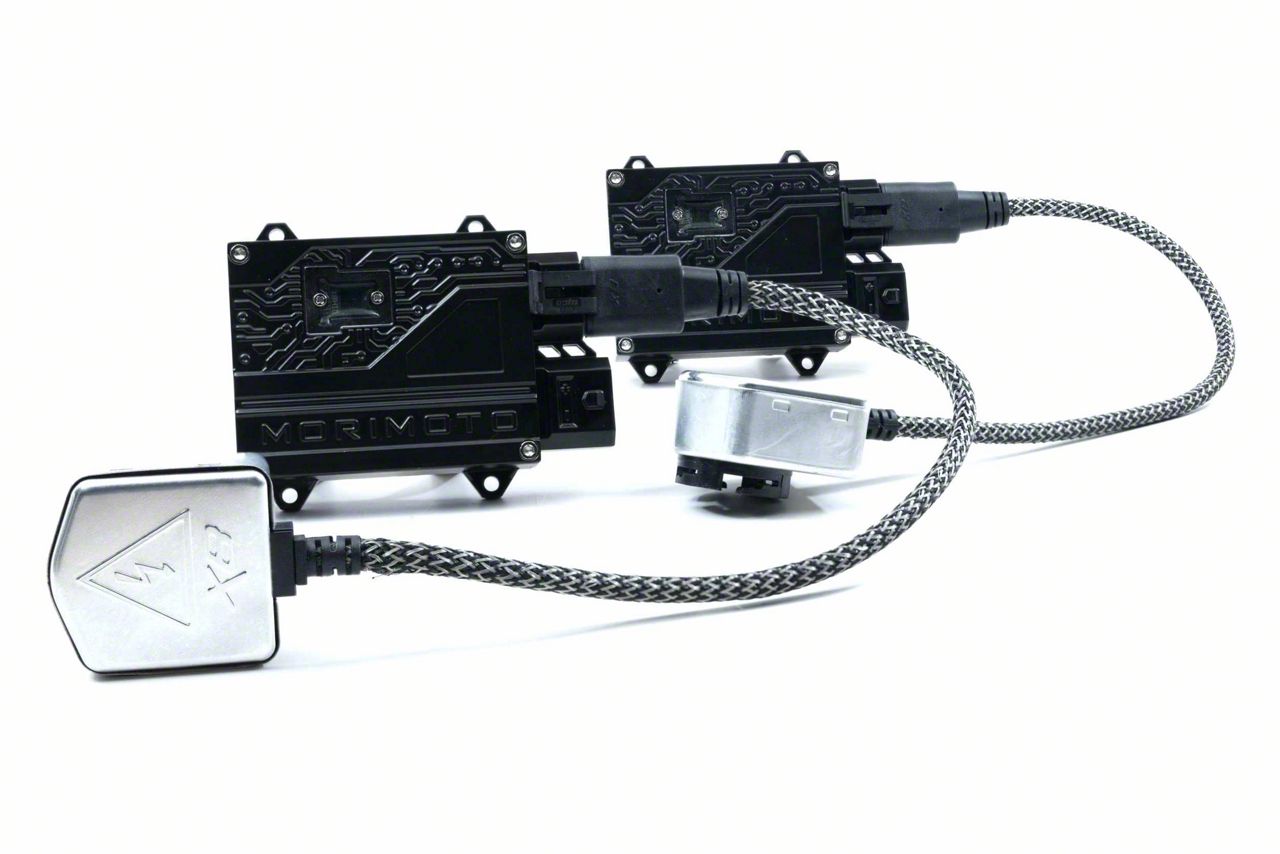

35w / D2S: Morimoto XB Ballast - BL12 - BL12

Brand:

Morimoto

Category:

Lights

MPN#: BL12

In Stock
Regular price
$65.46
Regular price
Sale price
$65.46
This Item May Qualify for Free Ground Shipping! Click here for more information

Quantity

Installment payment plans

Automatic entries to sweepstakes Learn more

Quantity

About Morimoto

We redefine the automotive aftermarket for high intensity lighting. Taking the poorly lit back roads has never been more exciting with Morimoto powered headlamps. Morimoto lighting was established in 2008 to fill the gap in the aftermarket for truly high quality automotive lighting products. Without the budget of a major automaker to back R&D and production, individual consumers could either salvage original equipment components, or be forced to settle for inferior aftermarket parts. If you are an enthusiast, a fabricator, or a distributor and have found yourself unimpressed with the ‘dime-a-dozen’ HID kits and accessories from other manufactures, then we urge you to take a closer look at what we have to offer. Search the web for an alternative name in lighting that comes more widely recommended by end-users for performance, reliability, and the way it looks and if you can find it, then buy it. Morimoto is the automotive lighting benchmark.

This product is NOT DOT approved and therefore it is not streetlegal in the USA.

Trusted: With global distribution exceeding a half-million units over the last six years, more enthusiasts chose Morimoto over any other aftermarket ballast in the world. By adopting everything that was good about the out-going design and tossing the rest out the window, the XB35 2.0 excels in every way. Reliability: When two of the best names in ballasts get together to create something new, good things happen. The new XB is essentially a Hylux + Morimoto mash up, and we are proud to bring their new ballast baby to North America! Designed to last for 2500 hours and we're confident they will. The powerful AS15-G4 IC chip recognizes outside system faults such as a loose high voltage connection, and after one misfire will cut power rather than potentially self-destruct. The software is proprietary to this ballast alone. Protected: The die-cast aluminum shell houses a 100% potted circuit board; eliminating any chance of moisture damage. The AMP SuperSeal three-pin connector from TE Connectivity between the igniter and the ballast ensures the safety of this crucial output. Compact: Slim 18mm body will mount almost anywhere, and that's OK because they're fully sealed from the elements. There are four mounting points cast directly into their shell, no spare brackets to mess with. Versatile: Since the igniter cord can be unplugged from the HID ballast computer, you can easily change from AMP to D2S or vice-versa (without the use of unreliable adapters, that is). Likewise, if an igniter does happen to go bad, it can easily be replaced. Fast, Friendly and Efficient: Power hungry HID ballast replacements never work well with tricky CanBus systems, but the new Morimoto XB35 2.0 ballast consumes less than HALF of the start current than the previous model did. Far less than Denso, Mitsubishi, or FastBright which makes their ability to reach full intensity a more efficient process. Modern: Like all modern OEM D1 and D2 ballasts: the XB has relocated igniters far closer to the HID bulb. The lack of high voltage transmitted through wiring drastically reduces EMI/RFI (radio interference). Total system reliability is also improved by shielding the main circuit board from the static produced by these high voltage bursts on start up. Functional Work of Art: Designed in California by Morimoto's engineer, Yoshi Ishida, the Morimoto XB35 2.0 HID Ballasts are just as good looking on the outside as they are well-engineered on the inside. Stainless Steel hardware. TechFlex braided insulation. Embossed circuitry on the shell. We most admire how the laser-engraved graphics on the rear incorporate the potting-ports into the design. All about the details! Mature: The XB35 2.0 features countless advancements from the most popular OEM ballasts. In terms of modern headlight tech, High Intensity Discharge is now fully matured; and therefore the aftermarket gets the full benefit engineering progress in the OEM world. Time will tell, but we doubt there ever be an XB 3.0 ballast from Morimoto. This could be the grand finale, folks!

Tech Specs

INPUT VOLTAGE 9-18V DC
INPUT CONNECTION 9006 Male
INPUT CURRENT 5A @ 12V DC
OUTPUT D2S D2R Standard (P32-D)
OUTPUT Power 35w +/- 4%
RATED LIFESPAN 2,500 hours

Items Included

BALLAST 1x Morimoto XB35 2.0 Computer
IGNITER 1x Morimoto XB D2S
Warranty 2 Years

Vehicle Compatibility and Notes

HID BULBS D2S or D2R (P32-D)
INPUT 9006 Male
ELECTRICAL 9-18V Input
CANBUS Needs external harness

Installation Guide Click Here
