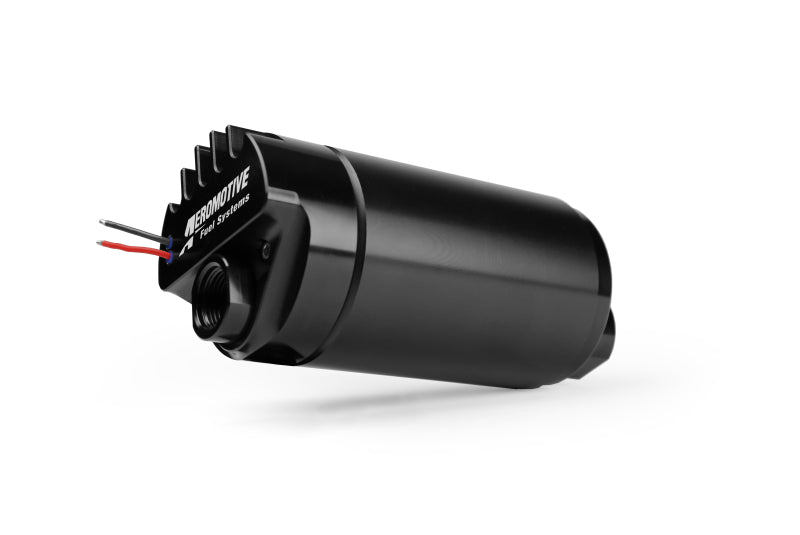

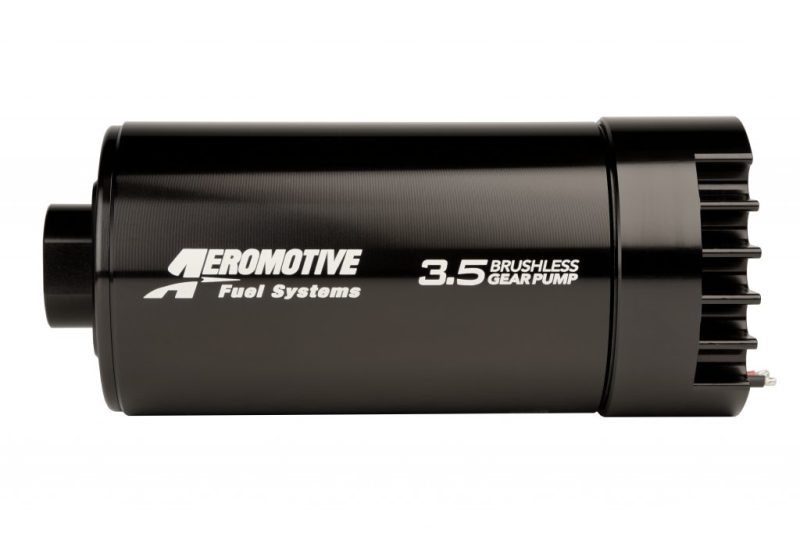

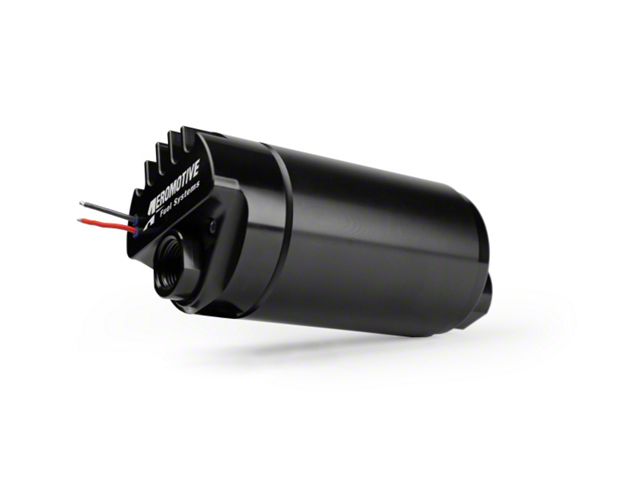

Aeromotive Brushless Pro-Series Fuel Pump External In-Line - 11181

• About Product
• Additional Details
• About the Brand

The market leader in fuel delivery systems and components, Aeromotive introduces its first brushless fuel pump series. The 3.5 Brushless Gear pump provides the Pro-Series Fuel Pump performance the world has come to trust and depend on, now available with the latest Spur-Gear pumping mechanism and brushless-motor technology. Built for up to 90 psi of sustained pressure, this new pump supports Pro-Series flow at higher pressures with minimal drop in flow. This new brushless spur-gear pump is able to move more fuel and sustain higher pressures without failure. ORB-12 inlet and ORB-10 outlet ports. For EFI applications use regulator P/N 13134 or P/N 13305. For carbureted applications use regulator P/N 13202 or P/N 13212. Capable of 90-PSI continuous operating pressure, 150 PSI peak pressure, base plus boost. Perfect for ?blow-through? carbureted engines up to 2,000 FWHP. Brushless motors employ sensors to monitor rotor angle to provide faster and more reliable phase shifting, producing more torque capacity and motor efficiency. Instead of the armature rotating, in a brushless motor the magnets rotate around the armature and the motor controller manages the phase shift to keep the motor rotating under load (load is related to pressure in a fuel pump).? With more torque per watt and a higher torque to weight ratio, brushless motors produce lower noise and deliver higher reliability. With a higher level of efficiency, down to fractions of a second in design speed control, the new Aeromotive brushless fuel pumps provide precise control of fuel pump RPM as pressure rises, better maintaining pump RPM and flow, producing a flatter flow curve.? Tight tolerances result in less current draw, less heat and extended life. Now there is the ability to upgrade to a premium brushless pump for faster, more reliable and uninterrupted fuel delivery with less power consumption and potential for wear or failure.

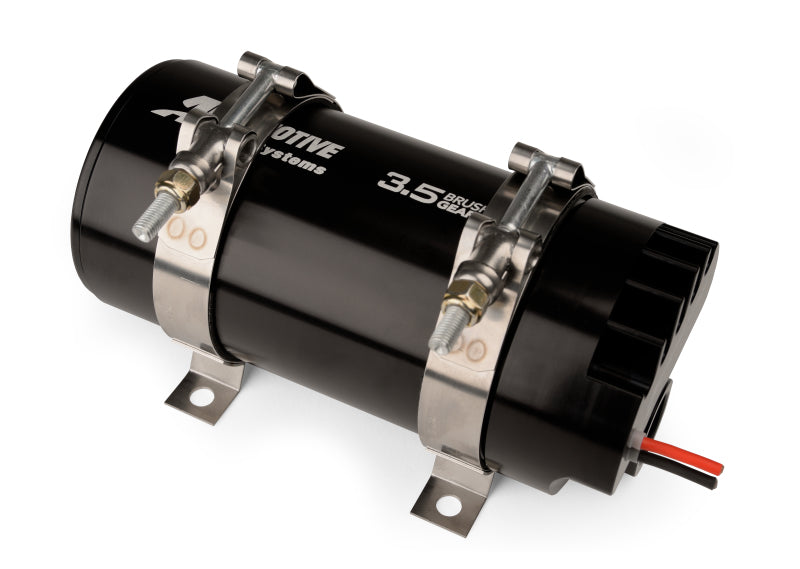

Fuel Pump, In-Line, Brushless, Spur, 3.5 (Includes T-Bolt Clamps For Mounting).

The Pro-Series performance you expect and more:Fuel injected engines: GAS up to 2400 FWHP – naturally aspirated up to 1800 FWHP – forced air induction. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.. Fuel injected engines: METHANOL up to 840 FWHP – naturally aspirated up to 630 FWHP – forced air induction. Fuel injected engines: E85 up to 1680 FWHP – naturally aspirated up to 1260 FWHP – forced air induction. Carbureted engines: METHANOL Up to 910 FWHP – naturally aspirated Up to 700 FWHP – forced air induction. EFI Rated flow of 1,250 lbs./hr. @ 40 psi, 13.5 volts Carb Rated Flow of 1,350 lbs./hr. @ 9 psi, 13.5 volts. Carbureted engines: GAS Up to 2600 FWHP – naturally aspirated Up to 2000 FWHP – forced air induction. Carbureted engines: E85 Up to 1820 FWHP – naturally aspirated Up to 1400 FWHP – forced air induction. Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.. 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.. Not compatible with pulse modulated systems or fuel pump speed controllers.. Aeromotive Brushless Pro-Series Fuel Pump External In-Line. Requires straight 12-VDC to 16-VDC power supply.. Reduced current draw at higher, EFI pressures.. Extended service life in methanol and ethanol.. Lighter than the traditional Pro-Series pump.. New integral spur-gear pumping mechanism.. Fuel Pump, In-Line, Brushless, Spur, Pro. ORB-12 inlet and ORB-10 outlet ports.. 3.5 Brushless Gear Pump-External. Aeromotive Fuel Pump. Aeromotive Pump. Fuel Pump

Fuel delivery is an important aspect to every vehicle. Having a proper fuel supply is vital to your vehicle's performance and reliability. Get your ride set up with fuel products from the best brands in the industry.

NOT CARB-APPROVED. ILLEGAL TO USE OR INSTALL IN CALIFORNIA. IF YOU LIVE IN CA, WE CANNOT SHIP YOU THIS ITEM AND YOU WILL BE CHARGED A 10% CANCELLATION FEE IF YOU ORDER. PLEASE LOOK FOR OTHER PRODUCTS WITH CARB APPROVAL.

Warning: This product listing contains generic images

WARNING: Cancer & Reproductive Harm. For more information, go to www.P65Warnings.ca.gov

Installation Instructions

1. Click to Download
2. Click to Download

[Pas•sion] An intense, almost uncontrollable enthusiasm. To us, passion is defined by three generations of performance. Aeromotive is the by-product from generations of blood, sweat and tears that has shaped our knowledge and experience. Our commitment to develop the pinnacle of performance products comes from our history, our real world experiences and our passion. That’s why you will see us at the track, driving our cars, testing our products, learning from our peers and living the industry we love. [Per•for•mance] A vehicle’s capacity to gain speed rapidly and move efficiently at a high speed. We believe that performance means reliability, longevity and durability. This is the philosophy we’ve built our company and our products on. Through the years, we have grown rapidly and are distancing ourselves from our competition because of our methodical, meticulous approach to deliver unrivaled performance with unmatched durability. When others couldn’t deliver, we’ve asked: Why can’t a performance fuel pump run for 125,000+ street miles? Why can’t it fuel you through rush hour and then down the track each and every weekend? This is where we flourish. Being the best is no secret. By utilizing aerospace processes, procedures and technology, in-house engineering, true applications knowledge and 3 generations of track experience, it’s easy to see why we are the “BEST”. You will never see us do a “ME TOO” product. Every product we develop offers some feature or benefit left off the table by our competition. And rest assured, every product that leaves our facility has been tested to the strictest standards and guaranteed by Aeromotive for integrity and reliability. We do all this to guarantee that you have the best performance fuel system your hard earned dollar can buy.
