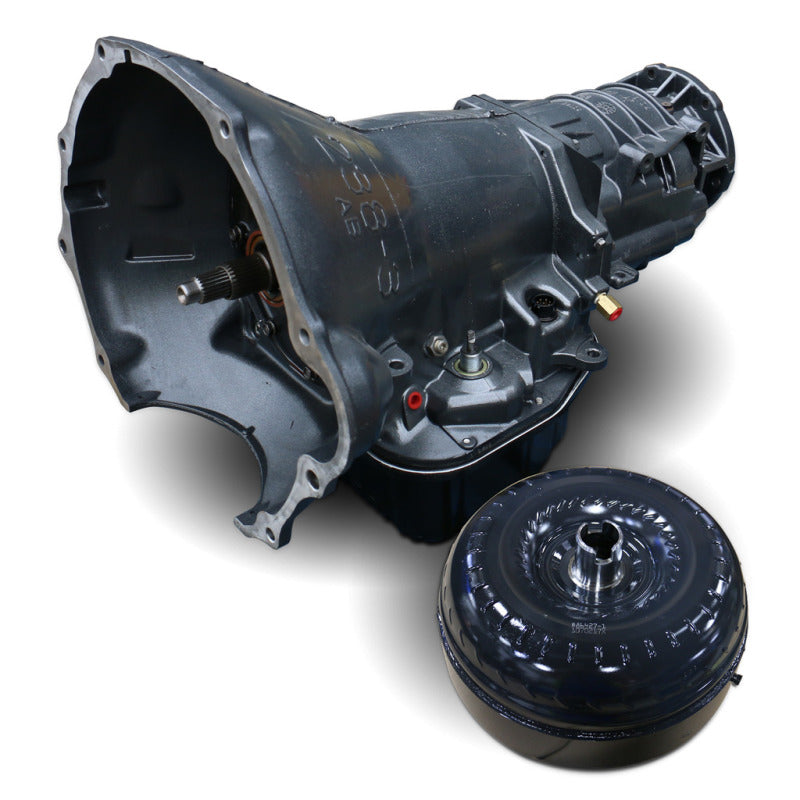

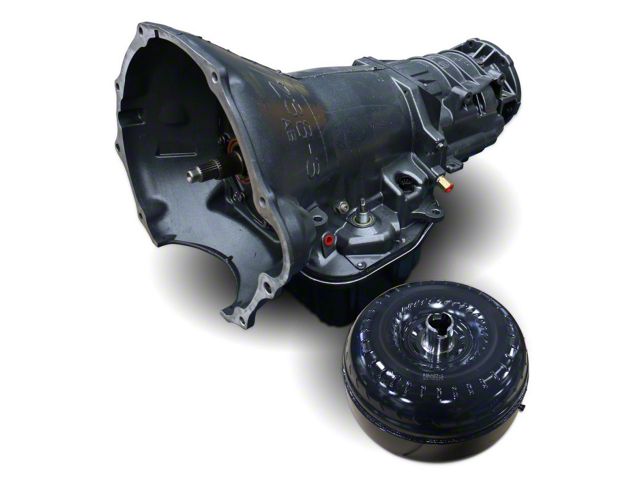

BD Diesel Transmission Kit - 2000-2002 Dodge 47RE 2wd - 1064182SS

• About Product
• Additional Details
• About the Brand
• Vehicle Fitment

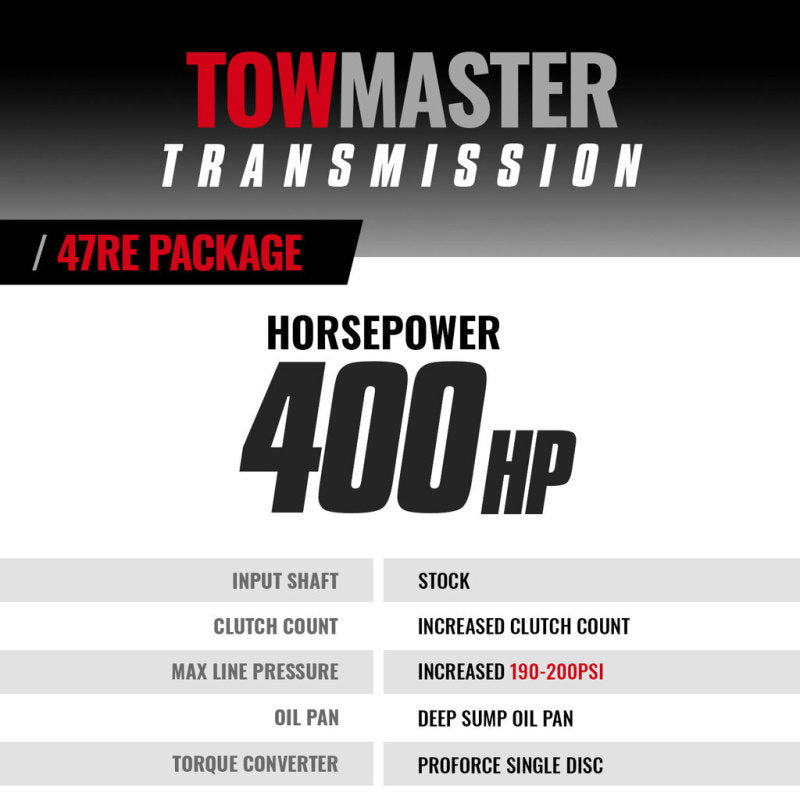

Transmission-Upgraded Valvebody, Upgraded governor solenoid, Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock. Increased line pressure to 190-200psi. No shuttle shifting problems, Modified manual valve for lube in all positions. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 6, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp/energy Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the 'snap' from rapid throttle and high horsepower. Billet 'Big' fine spline input shaft. Drilled intermediate shaft for increased lubrication. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall - Street/Towing applications. Machined pistons, HD springs absorb shock of engagement, Stamp forged 1-piece cover, Eliminates warpage from clutch heat, Taller cover can be rebuilt more often. Trapezoid teeth design, Engineered tighter tolerances. Self-centering teeth design increases contact decreases wear and chatter. Thrust bearings - not plastic thrust washers. Riveting process ensures alignment & eliminates vibration or embrittlement from welding. Cast stator designs maximizes torque. New sprag components ensure long term durability. Furnaced brazed fins reduces internal leakage for improved fluid coupling efficiency. Reduced overall weight by 12lbs compared to competitors. Warranty-> Parts 36 Month/150,000 miles, Labor 12 Month 24000 Miles

Transmission Kit; Complete Trans; Incl. Auxiliary Filter/2 QT Extra Capacity Pan; Incl. Complete Torque Converter; Enhanced Stall; Stage 4;

Upgraded governor solenoid - Twice the burst pressure than stock. BD TowMaster Dodge 47RE Trans & Converter Package 2000-2002 2wd. Stock thrust bushings replaced with roller Torrington bearings. BD auxiliary full flow filter kit for extra protection. BD Diesel Transmission Kit - 2000-2002 Dodge 47RE 2wd. Drilled intermediate shaft for increased lubrication. Up to triple the amount of lock-up clutch material. Upgraded governor pressure transducer (47RE/48RE). Modified manual valve for lube in all positions. Pan heat-dissipating fins keep temperature down. BD rigid aluminum heavy duty transmission pan. Cooler line case saver in every transmission. Enhanced Stall - Street/Towing applications. Lower rpm response than the stock converter. Increase the durability of your drivetrain. Torque multiplying cast aluminum stators. Not warranted for Race or Sled Pull use. TRANS PACKAGE DODGE 2000-2002 47RE 2WD. Every transmission is tested on a dyno. Upgraded Governor Pressure Transducer. Increased line pressure to 190-200psi. Less heat and better fuel economy. Pan adds 2qt extra oil capacity. Torque Convertor Enhanced Stall. High temp/energy Raybestos band. Automatic Transmission Assembly. Stamp-forged steel front cover. No Shuttle Shifting Problems. Stamped Forged 1 Piece Cover. Upgraded Governor Solenoid. Clutch Count: OD DIRECT 10. Suggested items: 1041210. More Efficient Operation. Clutch Count: FORWARD 5. Upgraded 48RE sunshell. Clutch Count: DIRECT 6. No Race Abuse Covered. Magnetic drain plug. Furnace-brazed fins. Upgraded Valve body. Billet barrel strut. Furnace Brazed Fins. Auto Trans Assembly. Clutch Count: OD 6. TRANS PKG STAGE 4. Billet band lever. TORQUE CONVERTOR:. Transmission Kit. Aluminum HD Pan. TRANSMISSION:

Your drivetrain is all the components responsible for transferring power from your engine and delivering it to the wheels. Drivetrain components are vital to your vehicles operation.

Warning: This product listing contains generic images

WARNING: Cancer & Reproductive Harm. For more information, go to www.P65Warnings.ca.gov

Installation Instructions

1. Click to Download
2. Click to Download
3. Click to Download

The BD name became recognized in 1989, when the company introduced the first exhaust brake for the burgeoning Diesel pick-up truck market. BD's roots, however, actually date back to 1972, when Valley Fuel Injection Ltd. first opened its doors. Today, Valley Fuel Injection (now BD Diesel Truck Service & Performance Center) and BD Diesel Performance are one, with specialty divisions that focus on Diesel power train components.

• 2000 Dodge Ram 2500 Base
• 2001 Dodge Ram 2500 Base
• 2002 Dodge Ram 2500 Base
• 2000 Dodge Ram 3500 Base
• 2001 Dodge Ram 3500 Base
• 2002 Dodge Ram 3500 Base
