BMR 05-14 S197 Mustang On-Car Adj. Panhard Rod (Polyurethane) - - PHR006R

Category:

Suspension

MPN#: PHR006R

In Stock
Regular price
$159.95
Regular price
Sale price
$159.95
This Item May Qualify for Free Ground Shipping! Click here for more information

Installment payment plans

Automatic entries to sweepstakes

Learn more

Quantity

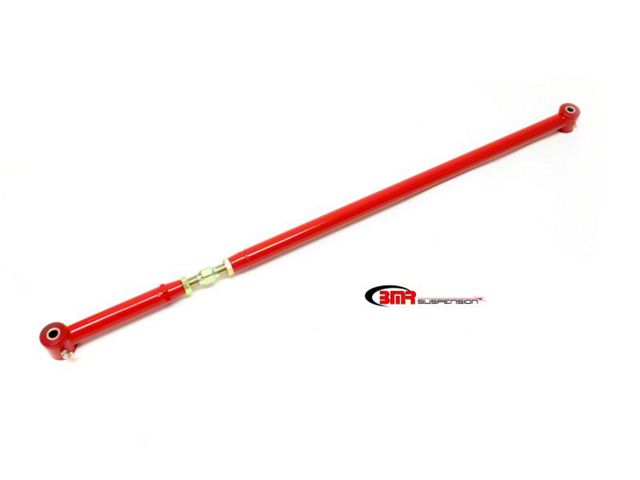

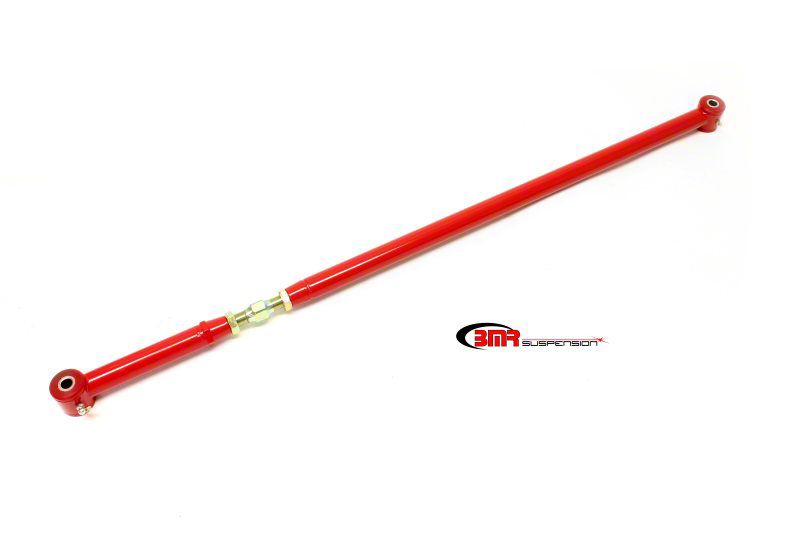

BMR 05-14 S197 Mustang On-Car Adj. Panhard Rod (Polyurethane) - Red

A Panhard rod is a suspension link that both locates the rear axle housing laterally and controls side-to-side movement. Factory S197 Mustang Panhard rods are made from weak U-shaped stamped steel with soft rubber bushings that allow excessive deflection under load. BMR Suspension's PHR006 Panhard rod is made 1.25-inch, 0.120-inch wall DOM tubing with TIG-welded chrome-moly tube adapters. The PHR006 features BMR's CNC-machined center adjuster, which is made from 4130 chrome-moly with rolled threads. The PHR006 features greasable, 95-durometer bushings, which add a solid, more responsive feel over the stock rubber bushings. BMR's bushings are internally fluted, which allows grease to evenly coat the inner sleeve, keeping grease in the bushing under high compression loads. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings. BMR Suspension designed the PHR006 to work well for street performance, drag race, and road race applications. The heavy-duty construction eliminates the deflection seen in stamped-steel Panhard rods. Other Panhard rods on the market include rubber bushings that will deflect under heavy loads. The 95-durometer polyurethane bushings of the PHR006 reduce bushing deflection, giving you much-improved, repeatable handling characteristics on the street, starting line, or in aggressive corners. The on-car adjustable design makes the PHR006 great lowered Mustangs. This gives you all the strength and adjustability you need for great handling without huge increases in NVH. When performance is a must, rely on BMR Suspension!

The on-car adjustable design makes the PHR006 great for lowered Mustangs. This gives you all the strength and adjustability you need for great handling without huge increases in NVH.

Fits 2005-2014 S197 Mustangs;On-car adjustable design;Allows for proper centering of the axle housing on lowered vehicles;1 1/4-inch DOM Steel;Chrome-moly tube adapters;TIG-welded;Heavy-duty CNC-machined Chrome-moly center adjuster;95-durometer, greasable, internally fluted, polyurethane bushings;Eliminates Panhard Rod deflection;Designed for street performance, drag race, and road race applications;Durable powdercoat finish;1-hour installation time;Proudly designed in the U.S.A.;Proudly made in the U.S.A.. BMR 05-14 S197 Mustang On-Car Adj. Panhard Rod (Polyurethane) - Red. Panhard Rod, DOM, On-car Adjustable, Polyurethane Bushings. Suspension Trailing Arm / Panhard Rod Kit. BMR Suspension - PHR006R. Panhard rod

Suspension components are key to making sure your car is riding smoothly on or off the road. With upgraded suspension components, you can unlock the full potential of your vehicles performance.

Warning: This product listing contains generic images

When BMR Suspension began back in 1998, it was difficult for performance automotive enthusiasts to find suspension products that had an innovative design and quality construction at an affordable price. BMR turned this market void into a business philosophy, and has been serving our customer's needs ever since. Currently offering chassis, suspension, and drivetrain products for 22 different vehicles, BMR is the leading suspension manufacturer in many of the market segments that it serves. Whether you are interested in street performance, hardcore drag racing, or handling applications, BMR Suspension has the products that you need. Proudly made in the U.S.A. in a manufacturing facility near Tampa, Florida, American workers cut, bend, notch, drill, and mill components from American-made DOM and chrome-moly steel. Then, every product is fixture-welded to maintain consistent quality. Workers bead-blast parts and then powdercoat them using BMR's in-house powdercoating line. Finished parts are then assembled and packaged in the assembly department. By manufacturing every product in house, BMR can control the quality at every stage of the manufacturing process. BMR Suspension products fit and work so well because they are street driven and track tested on BMR project vehicles. Past project cars include a 2005 Mustang drag car, a 2005 Mustang street car, a 2004 GTO, and a 1994 Camaro. BMR's current project vehicles include a 2016 Camaro, three 2015 Mustang GTs, a 2011 Mustang GT, a 2010 Camaro, and a 1969 Camaro. As if that were not enough, BMR also has a 2009 G8 GT, a 2008 Trailblazer SS,a 2003 Mach 1 Mustang, a 2000 Grand Prix GTP, a 1998 Camaro, a 1990 Mustang LX, a 1971 Camaro, a 1970 Chevelle, a 1967 Chevelle, and a 1968 GTO. But it is more than just great vehicles-virtually every BMR employee is a racer or hot rodder, as well. This love of racing is demonstrated everyday in BMR's customer service, design innovation, and manufacturing quality. By continuing to push the envelope in product design innovation and manufacturing technology, you can be sure that BMR Suspension will continue to offer the most innovative, quality-oriented, affordable suspension products available. When performance is a must, rely on BMR Suspension!

  • 2005 Ford Mustang Base
  • 2005 Ford Mustang GT
  • 2006 Ford Mustang Base
  • 2006 Ford Mustang GT
  • 2007 Ford Mustang Base
  • 2007 Ford Mustang GT
  • 2007 Ford Mustang Shelby GT500
  • 2007 Ford Mustang Shelby GT
  • 2008 Ford Mustang Shelby GT
  • 2008 Ford Mustang Shelby GT500
  • 2008 Ford Mustang GT
  • 2008 Ford Mustang Base
  • 2008 Ford Mustang Bullitt ( door , HP Cylinder L, speed )
  • 2008 Ford Mustang Shelby GT500KR ( door , HP Cylinder L, speed )
  • 2009 Ford Mustang Shelby GT500
  • 2009 Ford Mustang GT
  • 2009 Ford Mustang Base
  • 2009 Ford Mustang Bullitt ( door , HP Cylinder L, speed )
  • 2009 Ford Mustang Shelby GT500KR ( door , HP Cylinder L, speed )
  • 2010 Ford Mustang Base
  • 2010 Ford Mustang GT
  • 2010 Ford Mustang Shelby GT500
  • 2011 Ford Mustang Base
  • 2011 Ford Mustang GT
  • 2011 Ford Mustang Shelby GT500
  • 2012 Ford Mustang Base
  • 2012 Ford Mustang GT
  • 2012 Ford Mustang Shelby GT500
  • 2012 Ford Mustang Boss 302 ( door , HP Cylinder L, speed )
  • 2013 Ford Mustang GT
  • 2013 Ford Mustang Base
  • 2013 Ford Mustang Boss 302 ( door , HP Cylinder L, speed )
  • 2013 Ford Mustang Shelby GT500
  • 2014 Ford Mustang Base
  • 2014 Ford Mustang GT
  • 2014 Ford Mustang Shelby GT500
+
