BMR 05-14 S197 Mustang Body Mount Watts Link Rod End/Poly - WL005H

Category:

Drivetrain

MPN#: WL005H

In Stock
Regular price
$879.95
Regular price
Sale price
$879.95
This Item May Qualify for Free Ground Shipping! Click here for more information

Installment payment plans

Automatic entries to sweepstakes

Learn more

Quantity

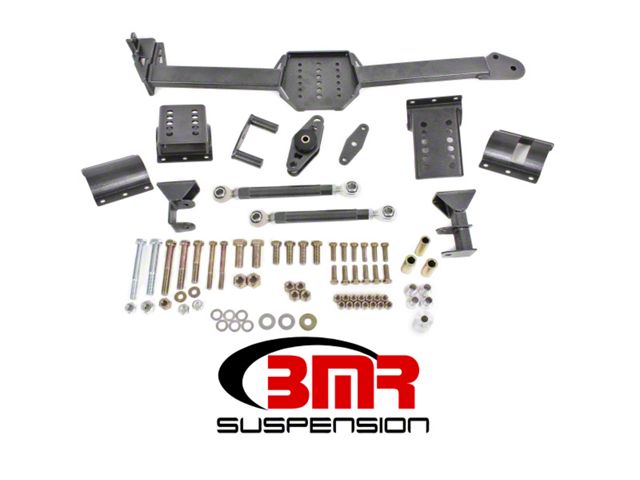

BMR 05-14 S197 Mustang Body Mount Watts Link Rod End/Poly w/ Adj. Axle Clamps - Black Hammertone

A Watts link locates the rearend housing and eliminates lateral axle movement by keeping the differential perfectly centered under the car through the suspension?s entire range of motion. Add the ultimate lateral differential location device to your S197 Mustang with a Body-Mounted Watts Link from BMR Suspension. Manufactured from heavy-duty 1x2-inch, 0.120-inch rectangular steel tubing and 1/4-inch laser-cut steel plate, BMR?s Watts link (WL005) is the ultimate in strength. The axle mounts are built from heavy-duty 3/16-inch laser-cut, CNC-formed steel plate. Double shear link mounts connect the adjustable links to the center pivot. These mounts give you tons of strength and zero deflection. Other companies take the easy route, sacrificing strength with single shear mounts. BMR?s center pivot is fabricated from ?-inch laser-cut plate steel with 1 5/8-inch DOM steel tubing. It uses a double shear mount to the crossmember with a greasable Delrin bushing for smooth, bind-free movement. The links are built from heavy-duty aluminum with left and right hand threaded 5/8-inch rod ends for easy on-car adjustability. The WL005 features zinc-plated, X-series, heat-treated, chrome-moly, self-lubricating, Teflon-lined rod ends and 95-durometer polyurethane bushings. It also features 304 stainless steel, custom designed rod end spacers.

The WL005 is 100-percent bolt-in and requires no cutting or modifying of the S197 chassis. The Watts link is adjustable, allowing for fine-tuning and the bind-free suspension articulation needed for superior handling.

Fits 2005-2014 S197 Mustangs;Body Mounted;100% Bolt-on;1 x2-inch rectangular steel tubing;?-inch laser-cut steel plate;Heavy-duty zinc-plated, X-series, heat-treated, chrome-moly, self-lubricating, Teflon-lined rod ends;95 Durometer Internally fluted polyurethane bushings;Six Roll Center Adjustments;Fabricated Center Pivot;Greasable Delrin center bushing;Double Shear Construction;Works With Stock or BMR's SB042 Sway Bar;Designed for street performance, drag race, and road race applications;Durable powdercoat finish;3-4 hour installation time;Proudly designed in the U.S.A.. BMR 05-14 S197 Mustang Body Mount Watts Link Rod End/Poly w/ Adj. Axle Clamps - Black Hammertone. Watts Link, Poly/Rod End. BMR Suspension - WL005H. Watts Link

Your drivetrain is all the components responsible for transferring power from your engine and delivering it to the wheels. Drivetrain components are vital to your vehicles operation.

Warning: This product listing contains generic images

When BMR Suspension began back in 1998, it was difficult for performance automotive enthusiasts to find suspension products that had an innovative design and quality construction at an affordable price. BMR turned this market void into a business philosophy, and has been serving our customer's needs ever since. Currently offering chassis, suspension, and drivetrain products for 22 different vehicles, BMR is the leading suspension manufacturer in many of the market segments that it serves. Whether you are interested in street performance, hardcore drag racing, or handling applications, BMR Suspension has the products that you need. Proudly made in the U.S.A. in a manufacturing facility near Tampa, Florida, American workers cut, bend, notch, drill, and mill components from American-made DOM and chrome-moly steel. Then, every product is fixture-welded to maintain consistent quality. Workers bead-blast parts and then powdercoat them using BMR's in-house powdercoating line. Finished parts are then assembled and packaged in the assembly department. By manufacturing every product in house, BMR can control the quality at every stage of the manufacturing process. BMR Suspension products fit and work so well because they are street driven and track tested on BMR project vehicles. Past project cars include a 2005 Mustang drag car, a 2005 Mustang street car, a 2004 GTO, and a 1994 Camaro. BMR's current project vehicles include a 2016 Camaro, three 2015 Mustang GTs, a 2011 Mustang GT, a 2010 Camaro, and a 1969 Camaro. As if that were not enough, BMR also has a 2009 G8 GT, a 2008 Trailblazer SS,a 2003 Mach 1 Mustang, a 2000 Grand Prix GTP, a 1998 Camaro, a 1990 Mustang LX, a 1971 Camaro, a 1970 Chevelle, a 1967 Chevelle, and a 1968 GTO. But it is more than just great vehicles-virtually every BMR employee is a racer or hot rodder, as well. This love of racing is demonstrated everyday in BMR's customer service, design innovation, and manufacturing quality. By continuing to push the envelope in product design innovation and manufacturing technology, you can be sure that BMR Suspension will continue to offer the most innovative, quality-oriented, affordable suspension products available. When performance is a must, rely on BMR Suspension!

  • 2005 Ford Mustang Base
  • 2005 Ford Mustang GT
  • 2006 Ford Mustang Base
  • 2006 Ford Mustang GT
  • 2007 Ford Mustang Base
  • 2007 Ford Mustang GT
  • 2007 Ford Mustang Shelby GT500
  • 2007 Ford Mustang Shelby GT
  • 2008 Ford Mustang Shelby GT
  • 2008 Ford Mustang Shelby GT500
  • 2008 Ford Mustang GT
  • 2008 Ford Mustang Base
  • 2008 Ford Mustang Bullitt ( door , HP Cylinder L, speed )
  • 2008 Ford Mustang Shelby GT500KR ( door , HP Cylinder L, speed )
  • 2009 Ford Mustang Shelby GT500
  • 2009 Ford Mustang GT
  • 2009 Ford Mustang Base
  • 2009 Ford Mustang Bullitt ( door , HP Cylinder L, speed )
  • 2009 Ford Mustang Shelby GT500KR ( door , HP Cylinder L, speed )
  • 2010 Ford Mustang Base
  • 2010 Ford Mustang GT
  • 2010 Ford Mustang Shelby GT500
  • 2011 Ford Mustang Base
  • 2011 Ford Mustang GT
  • 2011 Ford Mustang Shelby GT500
  • 2012 Ford Mustang Base
  • 2012 Ford Mustang GT
  • 2012 Ford Mustang Shelby GT500
  • 2012 Ford Mustang Boss 302 ( door , HP Cylinder L, speed )
  • 2013 Ford Mustang GT
  • 2013 Ford Mustang Base
  • 2013 Ford Mustang Boss 302 ( door , HP Cylinder L, speed )
  • 2013 Ford Mustang Shelby GT500
  • 2014 Ford Mustang Base
  • 2014 Ford Mustang GT
  • 2014 Ford Mustang Shelby GT500
+
