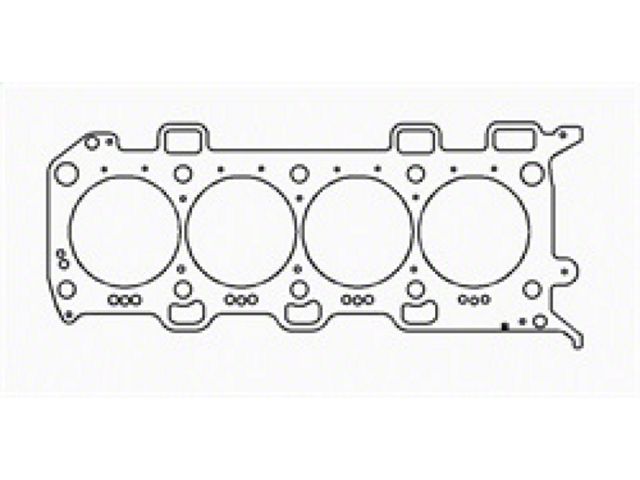

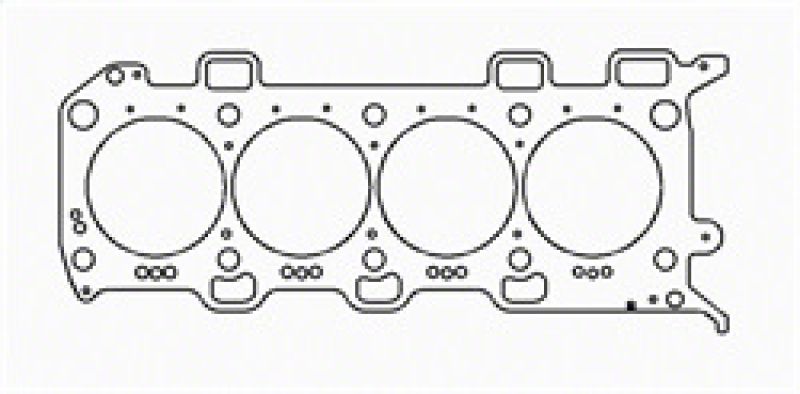

Cometic 11 Ford Modular 5.0L 94mm Bore .056 Inch MLS - C5286-056
Cometic 11 Ford Modular 5.0L 94mm Bore .056 Inch MLS - C5286-056
Cometic 11 Ford Modular 5.0L 94mm Bore .056 Inch MLS - C5286-056

Cometic 11 Ford Modular 5.0L 94mm Bore .056 Inch MLS - C5286-056

Brand:
Cometic Gasket
Category:
Engine Components
Regular price
$166.61
Sale price
$149.95
Unit price
per
SKU:
C5286-056
Backordered: Order now to secure your spot!

(or contact Live Chat for ETA or Alternatives)

Found a Cheaper Price? Click Here
Shipping calculated at checkout.


AUTOMATIC ENTRIES TO SWEEPSTAKES:

Quantity

Product Description

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.056". Right Side. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

COMETIC MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for today's high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

Ford 5.0L Modular V8 in.Coyotein. 94mm Bore MLS Head Gasket. Comprised of mulitple embossed layers of stainless steel with the outer layers utilizing a viton rubber coating. Compressed operating thickness is .056in. Right Side. Each

Ford 5.0L Modular V8 "Coyote" 94mm Bore MLS Head Gasket. Comprised of mulitple embossed layers of stainless steel with the outer layers utilizing a viton rubber coating. Compressed operating thickness is .056". Right Side. Each

Cometic 11 Ford Modular 5.0L 94mm Bore .056 Inch MLS Right Side Headgasket

.056in. MLS Cylinder Head Gasket; 94mm Gasket Bore. RHS. Each

.056" MLS Cylinder Head Gasket, 94mm Gasket Bore. RHS. Each

Engine Cylinder Head Gasket

Cylinder Head Gasket

Head Gaskets sit between the engine block and cylinder head. They prevent the mixture of any gasses and oils with the cooling system of your car. If the head gasket goes bad on your vehicle, it could cause extreme amounts of damage. If you're going to increase the amount of horsepower in your car, we recommend upgrading to a cometic head gasket.

WARNING: Cancer & Reproductive Harm. For more information, go to www.P65Warnings.ca.gov

Installation Instructions

  1. Click to Download
About Cometic Gasket

All Cometic products are made in the United States with materials manufactured on American soil. Launched by four partners including current Founder and CEO Bob Gorman in 1989, Cometic was originally dedicated exclusively to the powersports industry. Operating from a tiny 1,500 square foot manufacturing facility, the company produced a mere 900 SKUs in its first year. The company is now wholly owned by the Gorman family - and has grown into a global leader and innovator in the highly competitive engine supplier marketplace. STATE-OF-THE-ART TECHNOLOGY Housed in a 70,000 square-foot, state-of-the-art R&D and manufacturing center in Concord, Ohio, Cometic Gasket has maintained its deep roots in the powersports industry while expanding to service the Domestic Automotive, Sport Compact, V-twin, Marine, Diesel, Agricultural, Industrial and Stationary Power markets. Today, Cometic Gasket offers over 85,000 SKUs, shipping gaskets and engine sealing solutions across the globe.

Vehicle Fitments

  • 2011 Ford F-150 FX2
  • 2011 Ford F-150 FX4
  • 2011 Ford F-150 King Ranch
  • 2011 Ford F-150 Lariat
  • 2011 Ford F-150 Platinum
  • 2011 Ford F-150 STX
  • 2011 Ford F-150 XL
  • 2011 Ford F-150 XLT
  • 2011 Ford Mustang GT
  • 2012 Ford F-150 FX2
  • 2012 Ford F-150 FX4
  • 2012 Ford F-150 King Ranch
  • 2012 Ford F-150 Lariat
  • 2012 Ford F-150 Platinum
  • 2012 Ford F-150 STX
  • 2012 Ford F-150 XL
  • 2012 Ford F-150 XLT
  • 2012 Ford Mustang Boss 302 ( 2 door Coupe, 444HP 8 Cylinder Naturally Aspirated 5.0L, RWD 6speed Manual)
  • 2012 Ford Mustang GT
  • 2013 Ford F-150 FX2
  • 2013 Ford F-150 FX4
  • 2013 Ford F-150 King Ranch
  • 2013 Ford F-150 Lariat
  • 2013 Ford F-150 Platinum
  • 2013 Ford F-150 STX
  • 2013 Ford F-150 XL
  • 2013 Ford F-150 XLT
  • 2013 Ford Mustang Boss 302 ( 2 door Coupe, 444HP 8 Cylinder Naturally Aspirated 5.0L, RWD 6speed Manual)
  • 2013 Ford Mustang GT
  • 2014 Ford F-150 FX2
  • 2014 Ford F-150 FX4
  • 2014 Ford F-150 King Ranch
  • 2014 Ford F-150 Lariat
  • 2014 Ford F-150 Platinum
  • 2014 Ford F-150 STX
  • 2014 Ford F-150 XL
  • 2014 Ford F-150 XLT
  • 2014 Ford Mustang GT
  • 2015 Ford F-150 King Ranch
  • 2015 Ford F-150 Lariat
  • 2015 Ford F-150 Platinum
  • 2015 Ford F-150 XL
  • 2015 Ford F-150 XLT
  • 2015 Ford Mustang GT
  • 2015 Ford Mustang GT 50 Years Limited Edition
  • 2015 Ford Mustang GT Premium
  • 2016 Ford F-150 King Ranch
  • 2016 Ford F-150 Lariat
  • 2016 Ford F-150 Platinum
  • 2016 Ford F-150 SSV
  • 2016 Ford F-150 XL
  • 2016 Ford F-150 XLT
  • 2016 Ford Mustang GT
  • 2016 Ford Mustang GT Premium
  • 2017 Ford F-150 King Ranch
  • 2017 Ford F-150 Lariat
  • 2017 Ford F-150 Platinum
  • 2017 Ford F-150 SSV
  • 2017 Ford F-150 XL
  • 2017 Ford F-150 XLT
  • 2017 Ford Mustang GT
  • 2017 Ford Mustang GT Premium
  • 2018 Ford F-150 King Ranch
  • 2018 Ford F-150 Lariat
  • 2018 Ford F-150 Platinum
  • 2018 Ford F-150 SSV
  • 2018 Ford F-150 XL
  • 2018 Ford F-150 XLT
  • 2018 Ford Mustang GT
  • 2018 Ford Mustang GT Premium
