ICON 2019+ Ford Ranger Multi Rate Leaf Pack w/Add In - 198520A

• About Product
• Additional Details
• About the Brand
• Vehicle Fitment
• Product Videos

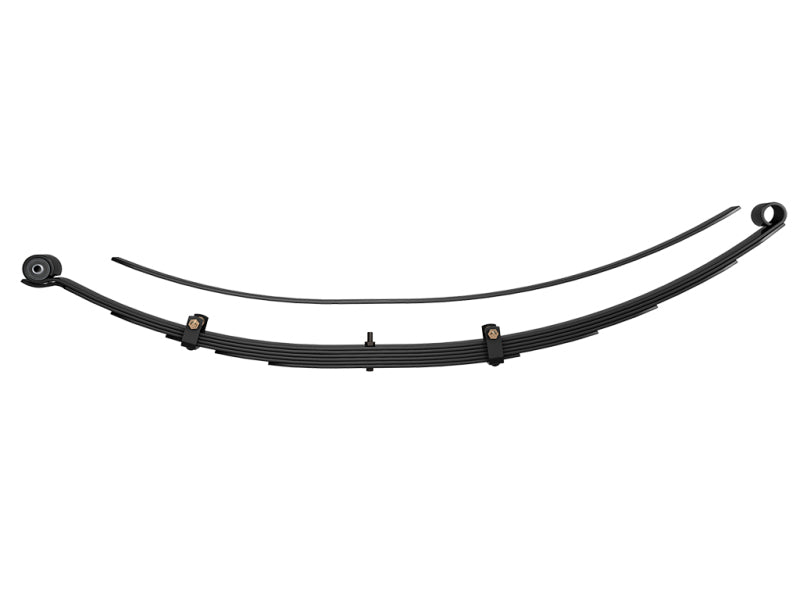

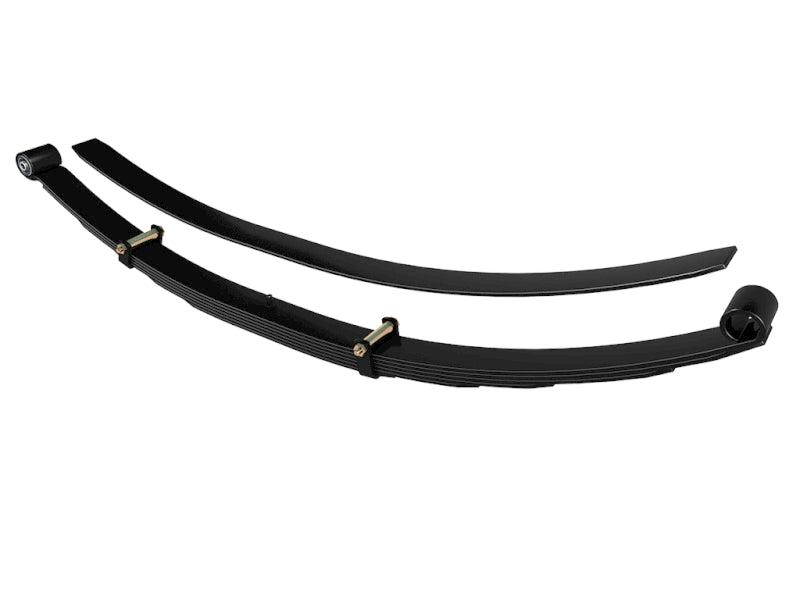

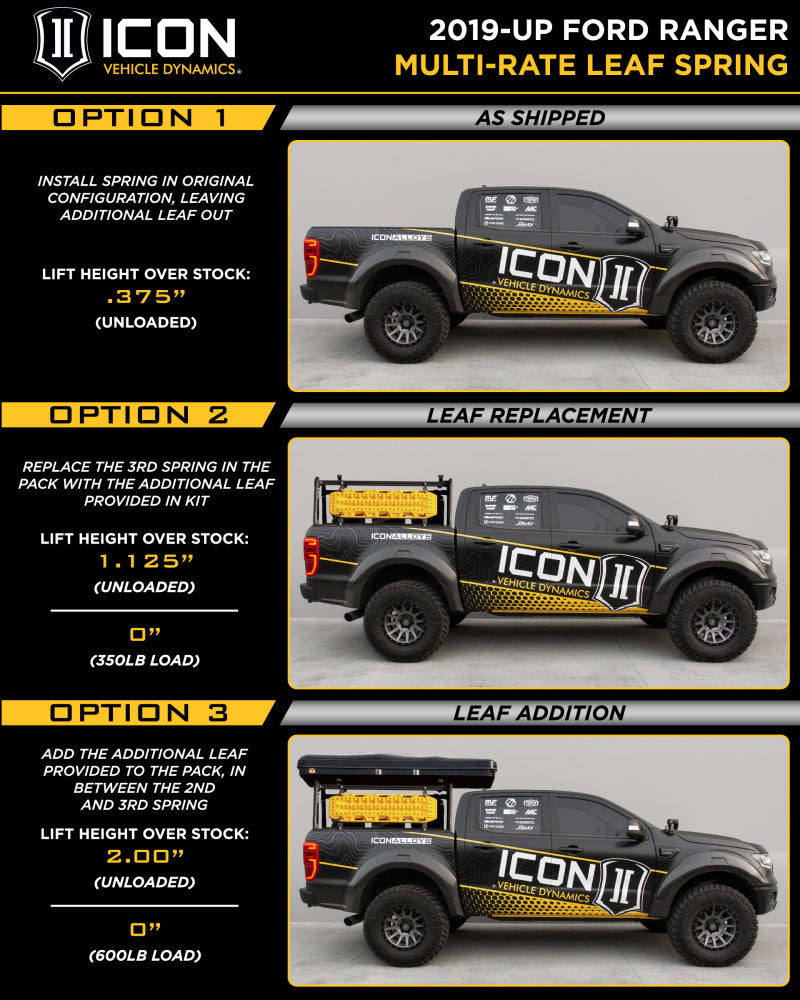

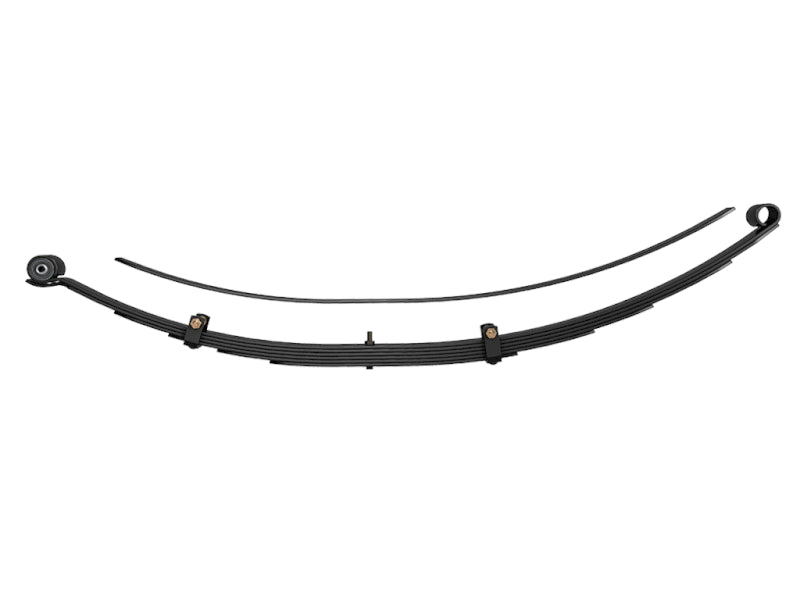

The ICON multi-rate leaf spring is a modular, user-adjustable product that offers a major performance gain for almost every accessory & gear setup imaginable. To improve the front-to-rear balance and increase the compliance of the truck, the spring rate has been lowered significantly compared to the OE spring. While many Ranger owners will embrace this, there are those who have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. Taking this into consideration, the leaf pack was designed with an additional leaf (included with kit) that can be exchanged or added to the pack yielding additional spring rate that will handle more "outfitted" vehicles. Aditionally, features like greaseable tip inserts and leaf separators reduce friction and increase ride comfort, while heavy duty eyelet bushings provide excellent durability and noise free operation.

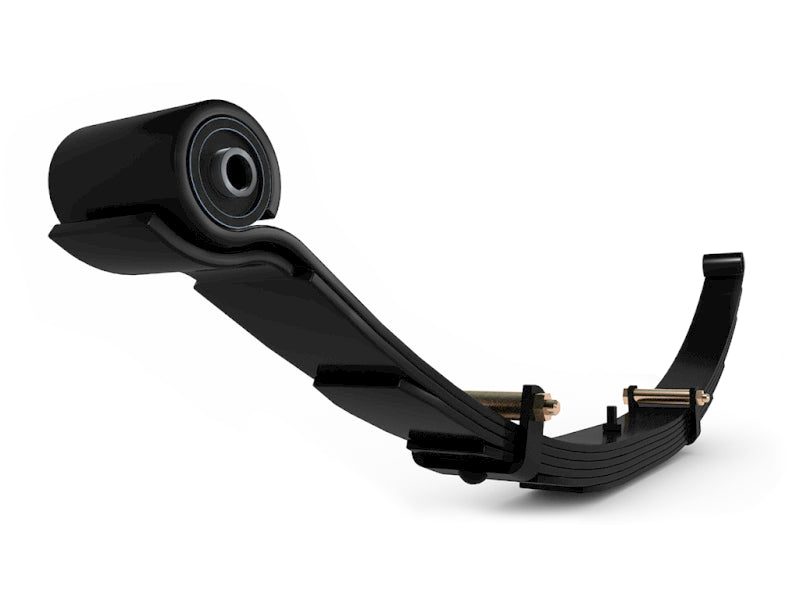

This ICON user-adjustable multi-rate leaf pack features tip inserts and leaf separators to reduce friction and increase ride comfort, while a military wrapped front eyelet improves durability and strength.

“ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability. TECH NOTE: The ICON Multi-Rate Leaf Spring (Part# 198520A) reuses the OEM leaf spring rear eyelet hat bushings. Significantly lighter spring rate (up to 35%) allows for smooth motion throughout the entire range of travel. TECH NOTE: These leaf springs are sold individually. A quantity of 2 are required per vehicle. TECH NOTE: Hardware kit part # 91200H required for installation (sold separately). Galvanized leaf separators reduce friction and aid in corrosion resistance. Hardware kit part # 91200H required for installation (sold separately). Greaseable leaf tip inserts reduce noise and increase ride comfort. 3 user-adjustable spring rates for unique vehicle configurations. Direct bolt-in to OEM spring location makes for an easy install. ICON 2019+ Ford Ranger Multi Rate Leaf Pack w/Add In Leaf. Improved front-to-rear vehicle balance and compliance. Optimized wheel position for maximum tire clearance. 19-23 RANGER MULTI RATE LEAF PACK W/ ADD IN LEAF. 19-UP RANGER MULTI RATE LEAF PACK W/ ADD IN LEAF. TECH NOTE: Not compatible with Ranger Raptor. 19-UP RANGER MULTI RATE LEAF PACK. Leaf Spring Kit. LEAF SPRING. 198520A

Suspension components are key to making sure your car is riding smoothly on or off the road. With upgraded suspension components, you can unlock the full potential of your vehicles performance.

Leaf springs are common for cars that have solid axle suspension. Leaf spring kits can be used to lift or lower vehicles, provided you install them with the proper U-bolts and other accessories.

Warning: This product listing contains generic images

WARNING: Cancer & Reproductive Harm. For more information, go to www.P65Warnings.ca.gov

Installation Instructions

1. Click to Download
2. Click to Download
3. Click to Download
4. Click to Download

<p>ICON Vehicle Dynamics is a premier performance suspension manufacturer that specializes in aftermarket suspension components for trucks, SUVs, and off-road suspension development. The company’s business is customer-driven, technology-influenced, engineering-oriented, and focuses on world-class manufacturing processes and techniques. Led by head engineer and SCORE champion driver Dylan Evans, ICON Vehicle Dynamics has the unique qualities to design and build the highest quality suspension components and test them in both real-world applications as well as race conditions.</p>

• 2019 Ford Ranger XLT
• 2019 Ford Ranger Lariat
• 2019 Ford Ranger XL
• 2020 Ford Ranger XL
• 2020 Ford Ranger XLT
• 2020 Ford Ranger Lariat
• 2021 Ford Ranger XL
• 2021 Ford Ranger XLT
• 2021 Ford Ranger Lariat
• 2022 Ford Ranger XL
• 2022 Ford Ranger XLT
• 2022 Ford Ranger Lariat
• 2023 Ford Ranger XLT
• 2023 Ford Ranger XL
• 2023 Ford Ranger Lariat
