Max Trac 07-13 GM K1500 4WD 7in/7in Spindle Lift Kit - K941370

Find parts that fit my vehicle Item TL-514276
Shop Owners Save More! Sign up for our dealer program

    Product Information

    Description, Q&A, Specs & Installation

    Features & Specs

    Description

    The Maxtrac Suspension 7 inch lift is a true measured lift for the 4WD GM Full size truck. This kit allows for a combined 35 inch tall tire using a 9 inch wide wheel to fit with minimal trimming. The front is designed with bolt on strut spacers, subframes, diff drops and extended steering knuckles. The rear lift comes with Maxtrac twin-tube shocks, lift blocks and U-bolts. With the combination of all these parts, you get a firm yet, comfortable ride while keeping your vehicles 4WD system functional

    Suspension components are key to making sure your car is riding smoothly on or off the road. With upgraded suspension components, you can unlock the full potential of your vehicles performance.

    If you like to off road and are looking to fit some bigger tires on your vehicle, a lift kit is one of the first modifications we recommend to our customers. Lift kits are great for enhancing your off roading experience because they allow your to have better wheel clearance for bigger tires and ground clearance for those aggressive trails.

    MaxTrac Suspension was founded in 2010 by a group of truck enthusiasts who share the same passion for building quality suspension products while keeping them affordable. Together, with decades of experience and knowledge that the group has built, we will continue to build our name into a brand that is recognized as one of the best in the industry. We take tremendous pride and dedication in providing the highest quality products while passing on the savings to you, Our Customer.

    The main aspect that sets us apart from other suspension manufacturers is that we provide three types of suspension product lines; Lifting, Leveling and Lowering. The cornerstone of our suspension systems is our spindles, which are made from either ductile-iron or forged aluminum and provide a precise amount of lift or lowering, without compromising ride quality or suspension travel. With our ultra-durable, bullet-proof products, ride height options and affordability, MaxTrac is a brand that you can trust!

    Max Trac K941370

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Install Details & What's in the Box

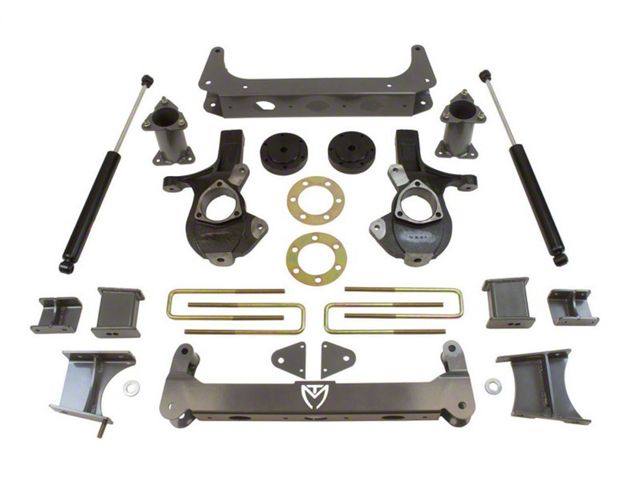

    What's in the Box

    • (1) PART# K941370
    • (1) 941370A Front Sub Frame
    • (1) 941370B Rear Sub Frame
    • (1) 741300D DS Steering Knuckle
    • (1) 741300P PS Steering Knuckle
    • (2) 941300C-1 Strut Spacer
    • (1) 941300C-2 DS Diff Drop Bracket
    • (1) 941300C-3 PS Diff Drop Bracket
    • (1) 941300C-6 Center Diff Bracket
    • (2) 941300C-8 Diff Mounting Ears
    • (1) 941300C-4 DS Sway Bar Bracket
    • (1) 941300C-5 PS Sway Bar Bracket
    • (2) 941300C-9 Aluminum Axle Spacer
    • (2) 941300C-7 Gold Axle Spacer
    • (2) 941300D-5 Spare Tire Spacer
    • (2) 810050 5" Lift Block
    • (2) 5/8-11 x 4 1/2" Hex Cap Screw
    • (2) 5/8-11 x 5 1/2" Hex Cap Screw
    • (4) 5/8-11 Nylock Nut
    • (5) 8/8" Hardened Flat Washer
    • (1) 9/16-12 x 4" Hex Cap Screw
    • (2) 9/16-12 x 1 3/4" Hex Cap Screw
    • (2) 1/2-13 x 1 3/4" Hex Cap Screw
    • (3) 9/16-12 Nylock Nut
    • (6) 9/16" Hardened Flat Washer
    • (2) 1/2-13 Nylock Nut
    • (4) 1/2" Hardened Flat Washer
    • (2) 1903 Red Shackle Bushing
    • (1) 9413CT Crush Tube
    • (1) 7/16-14 x 3 Hex Cap Screw
    • (1) 7/16-14 Nylock Nut
    • (2) 7/16" Hardened Flat Washer
    • (4) M10-1.5 x 60 Hex Cap Screw
    • (4) M10 Flat Washer
    • (4) M8-1.25 x 20 Hex Cap Screw
    • (4) M8-1.25 Nylock Nut
    • (8) M8 Flat Washer
    • (4) M10-1.5 x 35 Hex Cap Screw
    • (4) M10-1.5 Stover Nut
    • (8) M10 Flat Washer
    • (4) M8-1.25 x 20 Hex Cap Screw
    • (4) M8-1.25 Nylock Nut
    • (8) M8 Flat Washer
    • (4) M10-1.5 x 35 Hex Cap Screw
    • (4) M10-1.5 Stover Nut
    • (8) M10 Flat Washer
    • (2) M8-1.25 x 20 Hex Cap Screw
    • (2) M8-1.25 Flange Nut
    • (2) M8 Flat Washer
    • (2) 5" Zip Tie
    • (4) 1/4" Loop Clamp
    • (12) M10-1.5 x 60 Hex Cap Screw
    • (12) M10 Hardened Flat Washer
    • (8) M10-1.25 Flange Nut
    • (4) 9/16-20 x 12.5" U-Bolt
    • (8) 9/16-20 High Nut
    • (8) 9/16" Thick Washer
    4.7

    Reviews of Max Trac Suspension Products (51)

    Questions & Answers

    No questions about this product yet. Ask the First Question

    Will It Fit

    • Chevrolet Silverado 1500 - 07, 08, 09, 10, 11, 12, 13, 14, 15, 16
    • GMC Sierra 1500 - 07, 08, 09, 10, 11, 12, 13, 14, 15, 16
