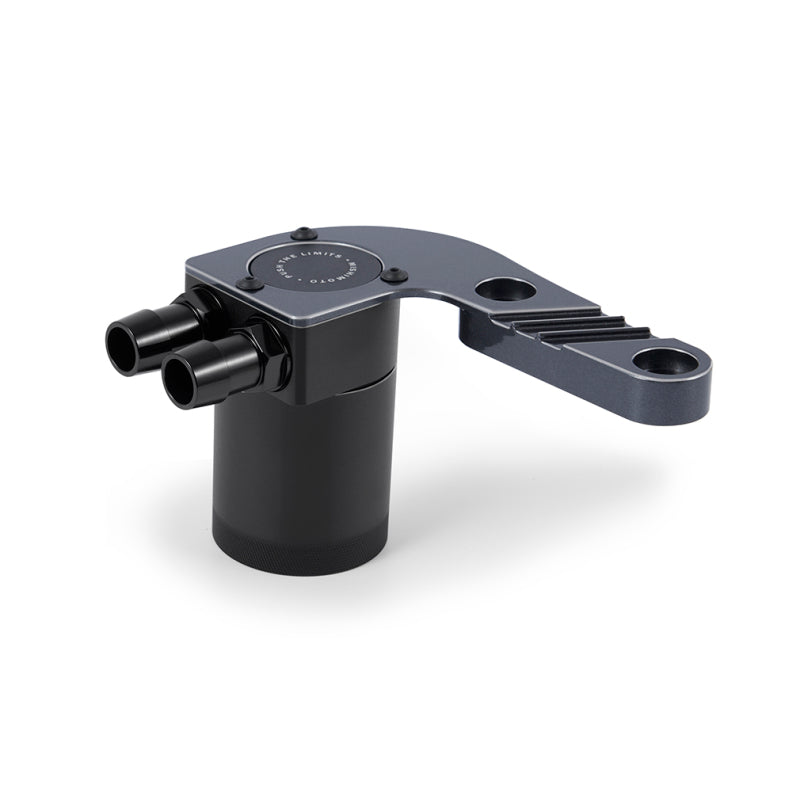

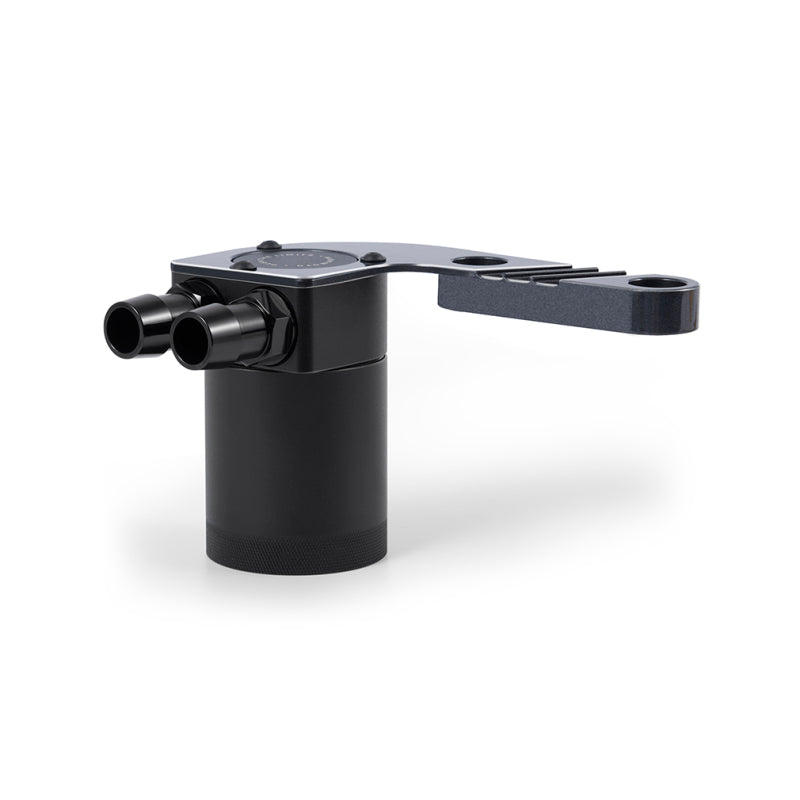

Mishimoto 15-20 BMW F8X M3/M4 Baffled Oil Catch Can - Mineral Gray

• 50-micron bronze filter and internal baffle for superior oil separation
• CNC-machined lid with large inlet and outlet ports
• Defends intercooler, intake system, and VANOS system from oil blow-by
• Maintains proper octane levels to reduce potential detonation

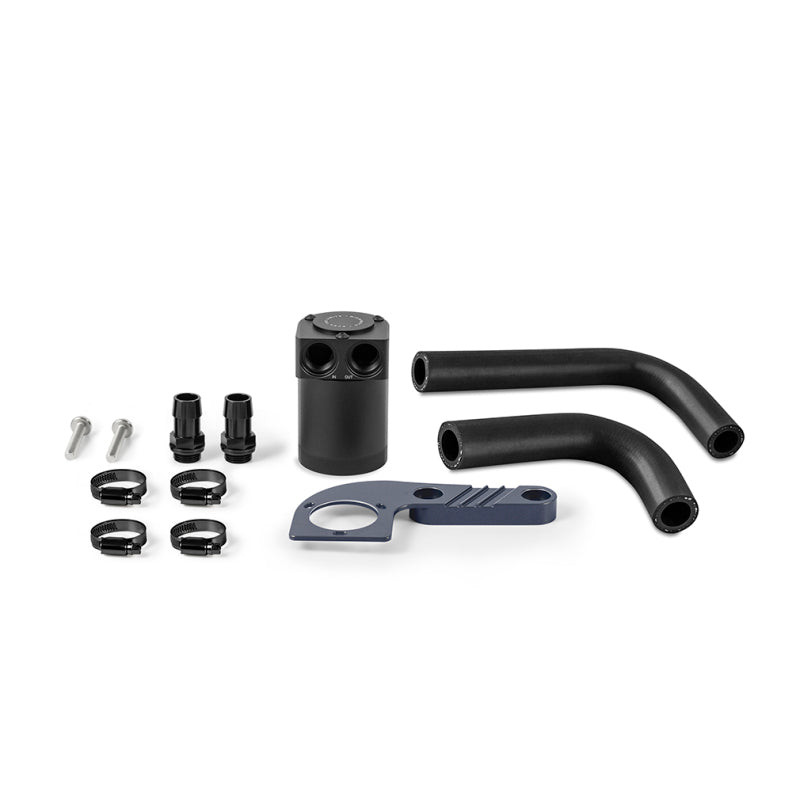

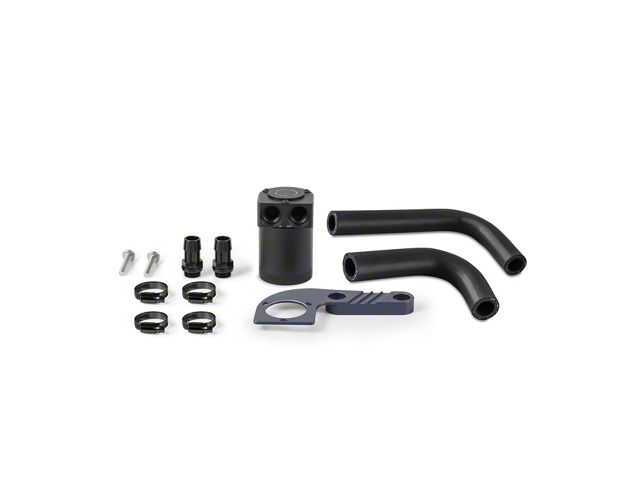

• Includes two direct-fit hoses and one direct-fit billet aluminum mounting bracket
• Available in 12 BMW specific color-matched options or classic black
• Two aluminum, 3/4” barb fittings for hose connection
• Mishimoto Lifetime Warranty

Give your 2015–2020 BMW M3/M4 the protection it deserves with the Mishimoto Baffled Oil Catch Can Kit. The introduction of the S55 into the M3 and M4 in 2015 was the first time compact M’s saw turbos from the factory, but these engines brought along another long-standing tradition—blow-by. The Mishimoto BMW M3/M4 catch can kit uses proven engineering from the patent pending Mishimoto 2-Port Compact Baffled Oil Catch Can, with its 50-micron bronze filter and internal baffle, to better separate the oil from the crankcase vapors.

The engineers at Mishimoto designed a CNC-machined lid that features large inlet and outlet ports to match the inner dimension of the CCV hose. This baffled oil catch can defends your intercooler, intake system, and VANOS system from oil blow-by and helps maintain proper octane levels to reduce potential detonation. The kit comes with two direct-fit hoses, which require no modification to the engine cover, and one direct-fit billet aluminum mounting bracket that is extremely easy to install and mounts the can in a serviceable location! Available with a color-matched bracket. Choose from 12 BMW specific color-matched options or classic black. Two aluminum, 3/4” barb fittings connect the hoses to the can. And, like every Mishimoto oil catch can, this baffled catch can kit comes with the Mishimoto Lifetime Warranty!

Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you’ve seen what we’ve seen in the bottom of our catch cans, you won’t want that draining back into your oil either.

Vehicle Fitment

• 2015 BMW M3 Base
• 2015 BMW M4 Base
• 2016 BMW M3 Base
• 2016 BMW M4 Base
• 2016 BMW M4 GTS
• 2017 BMW M3 Base
• 2017 BMW M4 Base
• 2018 BMW M3 Base
• 2018 BMW M4 Base
• 2019 BMW M2 Competition
• 2019 BMW M4 Base
• 2019 BMW M4 CS
• 2020 BMW M2 Competition
• 2020 BMW M4 Base
• 2020 BMW M4 CS
