Skunk2 Ultra Series Street K20A/A2/A3 K24 Engines Intake Manifold - 307-05-0600
Brand:
Skunk2 RacingCategory:
Engine ComponentsMPN#: 307-05-0600
- Regular price
- $525.99
- Regular price
-
$552.29 - Sale price
- $525.99
- Unit price
- per
Found a Cheaper Price?
Click HereAutomatic entries to sweepstakes

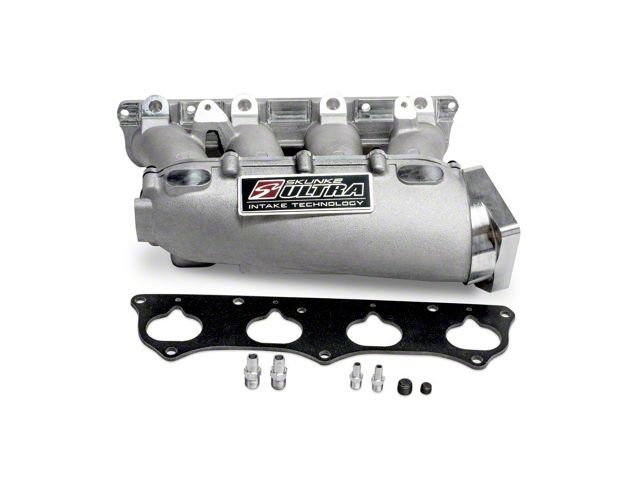

Learn moreSkunk2 Ultra Series Street K20A/A2/A3 K24 Engines Intake Manifold
The Skunk2 Racing Ultra Series Intake Manifolds represent the pinnacle of high-performance intake manifold design. The much-anticipated K-Series Street model is now available, showcasing years of research and development. This multi-piece cast aluminum intake manifold offers numerous advantages through its modular design, including easy disassembly, porting, and plenum volume changes via a removable plenum and optional plenum spacers.
Building on the legacy of the Pro Series Intake Manifold and utilizing the latest in CFD (Computational Fluid Dynamics) software, Skunk2 Racing has engineered a less restrictive manifold that provides significant torque and power gains. Extensive in-house dyno and on-car testing have resulted in a design that outperforms many competitors.
Key Features:
- Modular Design: Allows for easy disassembly, porting, and plenum volume changes.
- Material: High-grade 356 aluminum alloy for lightweight and added strength.
- Precision Manufacturing: CNC-machined for a precise fit and individually inspected for quality.
- Throttle Body Opening: 71mm, constructed with thick walls to minimize concerns of breakthrough when port matching.
- Plenum Volume: 1.82L, designed to distribute even airflow to all four cylinders under dynamic load conditions.
- Intake Runners: Long 8.72” runners with smooth transitions, ensuring maximum delivery of air to the cylinder.
- Velocity Stacks: Large, rigorously flow-tested velocity stacks and raised bell mouth entries for optimal air delivery.
Specifications:
- Volume: 1.82L
- Throttle Body Inlet: 71mm
- Runner Length: 8.74 inches
- Finish: Silver Plenum and Runners
Compatibility:
- Engine Types: K20A/A2/A3 K24 Engines
- Head and Throttle Body Mounting Flange Pattern: EARLY PRB/PRC style (can be installed on LATE RBC/RBB style cylinder heads with an aftermarket Water Bypass Adapter and DBW Throttle Body).
Additional Information:
- Not CARB-Approved: Illegal to use or install in California. Orders from California will incur a 10% cancellation fee.
- Warning: Cancer & Reproductive Harm. For more information, visit .
- Note: Product images are for illustration purposes and may not represent the actual item.
About Skunk2 Racing
Skunk2 Racing is renowned for its industry-leading products, designed and tested in-house using advanced computer simulation and modeling techniques. Each product undergoes rigorous dyno, street, and race track testing to ensure optimal performance under extreme conditions. Skunk2’s commitment to motorsports, technical partnerships, and sponsorships provides invaluable data for producing high-performance parts.
Founded in 1994, Skunk2 has released numerous industry-leading products, including the first cast aluminum, high-performance intake manifold, composite fuel rails, and valvetrain components made from premium materials. Skunk2's dedication to innovation and quality has earned it a reputation as a leader in the sport compact parts industry, continually pushing the boundaries of engine development and performance.
Experience the Skunk2 difference and take your engine’s performance to the next level with the Ultra Series Street Intake Manifold.
- 2002 Acura RSX Base
- 2002 Acura RSX Type-S ( door , HP Cylinder L, speed )
- 2003 Acura RSX Base
- 2003 Acura RSX Type-S ( door , HP Cylinder L, speed )
- 2002 Honda Civic Si ( door , HP Cylinder L, speed )
- 2003 Honda Civic Si ( door , HP Cylinder L, speed )
- 2004 Acura RSX Type-S ( door , HP Cylinder L, speed )
- 2004 Acura RSX Base
- 2004 Honda Civic Si ( door , HP Cylinder L, speed )
- 2005 Honda Civic Si ( door , HP Cylinder L, speed )
- 2005 Acura RSX Type-S ( door , HP Cylinder L, speed )
- 2005 Acura RSX Base
- 2006 Acura RSX Base
- 2006 Acura RSX Type-S ( door , HP Cylinder L, speed )
