Wilwood Master Cylinder Mounting Kit Firewall Adapter - 250-13167

Brand:

Wilwood

MPN#: 250-13167

In Stock
Regular price
$213.81
Regular price
$230.91
Sale price
$213.81
This Item May Qualify for Free Ground Shipping! Click here for more information

Installment payment plans

Automatic entries to sweepstakes

Learn more

Quantity

Wilwood Master Cylinder Mounting Kit Firewall Adapter

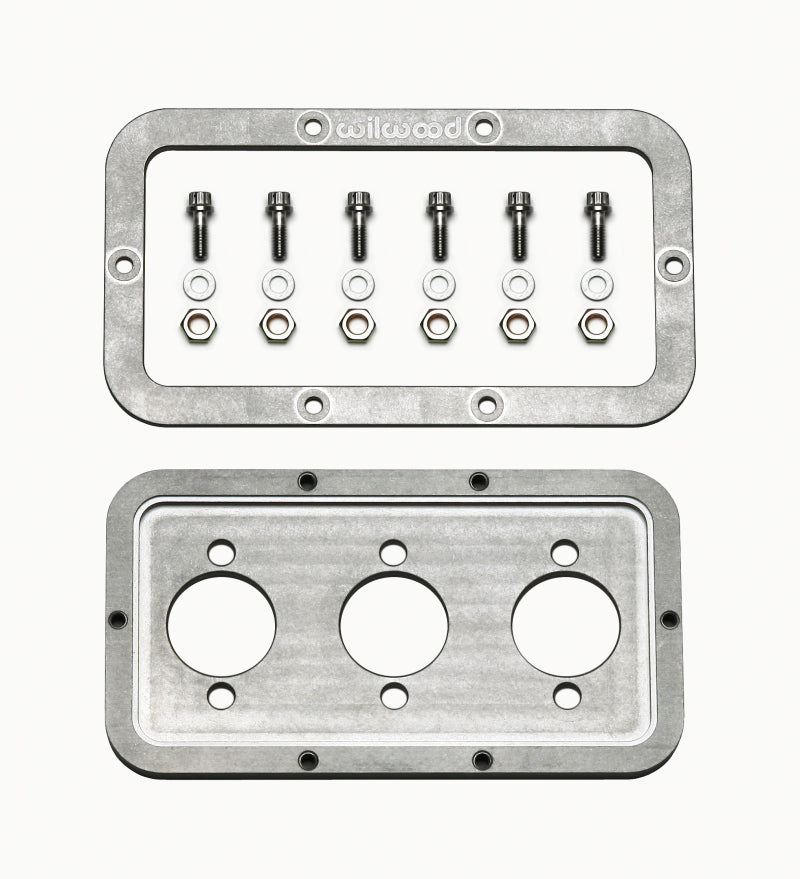

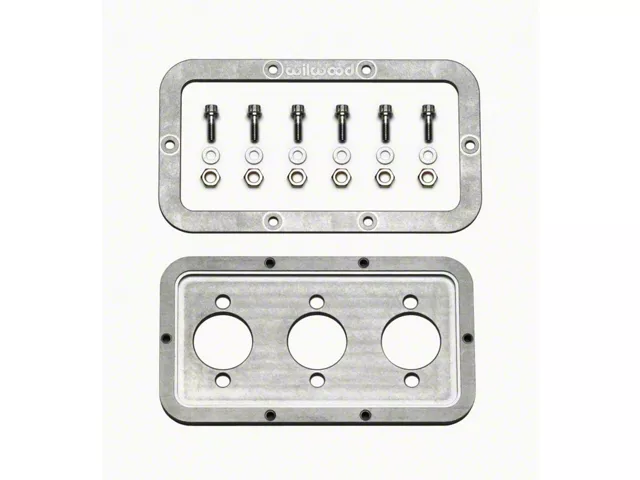

Wilwood's new billet aluminum Master Cylinder Firewall Mounting Kit, part number 250-13167. This mounting kit is specifically designed to work in conjunction with Wilwood’s Forward Mount Brake and Clutch Pedal Assembly and Flange Mounted Compact Remote Master Cylinders.The kit allows precision mounting of the pedal and master cylinders to the firewall, and leaves the engine compartment with a high-tech pro-finish look. The mounting plates recess the master cylinder mounting surface by .25”, which allows more clearance in the engine compartment. Both the engine compartment faceplate and interior side mounting plate are media burnished billet aluminum. The kit is designed to accept a firewall material thickness range of .040” - .080”, and requires a minimum flat area the size of the 4” x 8” faceplate. Also provided is all mounting hardware, including attractive, corrosion resistant stainless steel 12 point fasteners, and detailed installation instructions.

Wilwood Master Cylinder Mounting Kit Firewall Adapter. M/C MT KIT,FIREWALL,ASSEMBLY. MOUNT KIT,FIREWALL

Brake rotors and pads are essential parts to making sure your vehicle is stopping promptly. By upgrading your brake pads and rotors, your vehicle will be able to handle more aggressive braking for longer periods of time.

When replacing your brake pads, it is also important to replace your brake hardware. Replacing your brake hardware will prevent your brakes from seizing up and squeaking. Replacing brake hardware is cheap and easy, so make sure to replace it the next time you change your brake pads.

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles. With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee. Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications. Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

+
