Wilwood Proportioning Valve - Knob Adjust 3/8-24 IF Inlet & - 260-10922

• About Product
• About the Brand

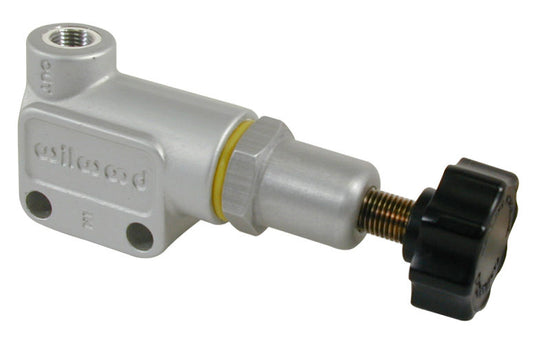

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. This adjustment lets you fine tune the front to rear braking balance by proportionally decreasing the rear brake line pressure. Valves weigh only 5.2 ounces and have two .25” side mounting holes spaced 1.00” apart. This valve varies from our standard Knob Style Proportioning valve, as the in and out ports are 3/8-24 inverted flare seats and do not require tube nut adapters to directly install 3/16 tubing with inverted flare 3/8-24 nuts.

Wilwood Proportioning Valve - Knob Adjust 3/8-24 IF Inlet & Outlet. VALVE,PROPORTIONING,COMPACT-ASSEMBLY KNOB TYPE,3/8-24IF,IN&OUT. VALVE,PROPORTIONING,COMPACT-ASSEMBLY. VALVE,PROPORTIONING

Brake rotors and pads are essential parts to making sure your vehicle is stopping promptly. By upgrading your brake pads and rotors, your vehicle will be able to handle more aggressive braking for longer periods of time.

When replacing your brake pads, it is also important to replace your brake hardware. Replacing your brake hardware will prevent your brakes from seizing up and squeaking. Replacing brake hardware is cheap and easy, so make sure to replace it the next time you change your brake pads.

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles. With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee. Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications. Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
