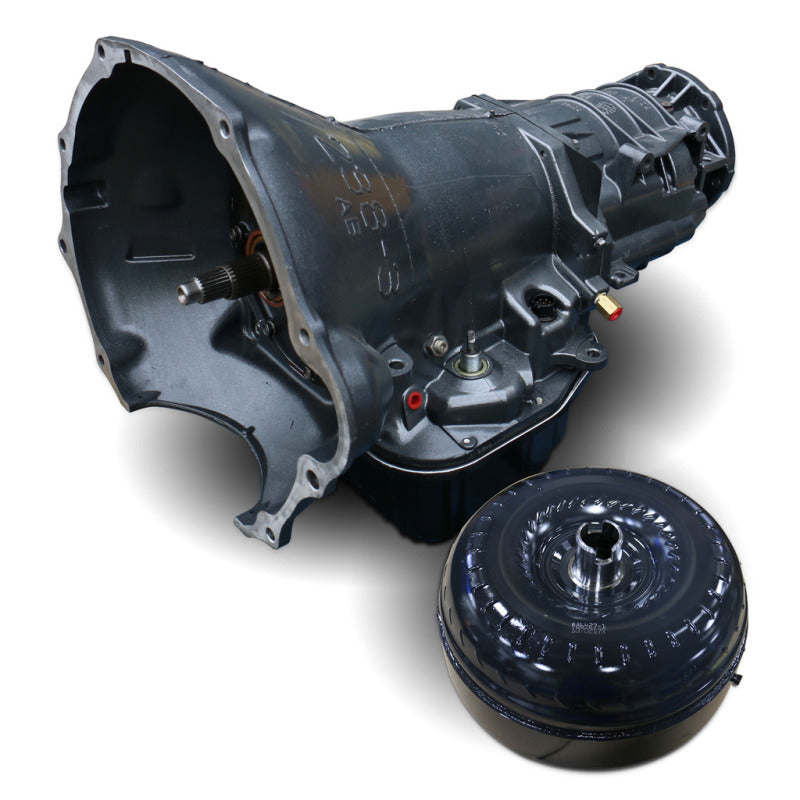

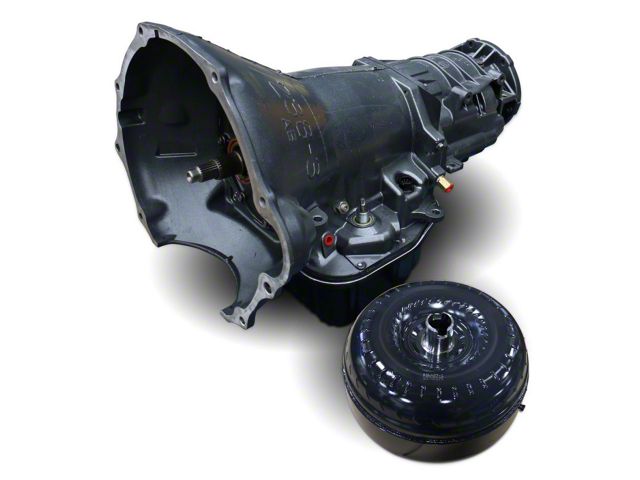

BD Diesel 94-95 Dodge 4WD 47RH Stage 4 Transmission & - 1064154SS

• About Product
• Additional Details
• About the Brand
• Vehicle Fitment

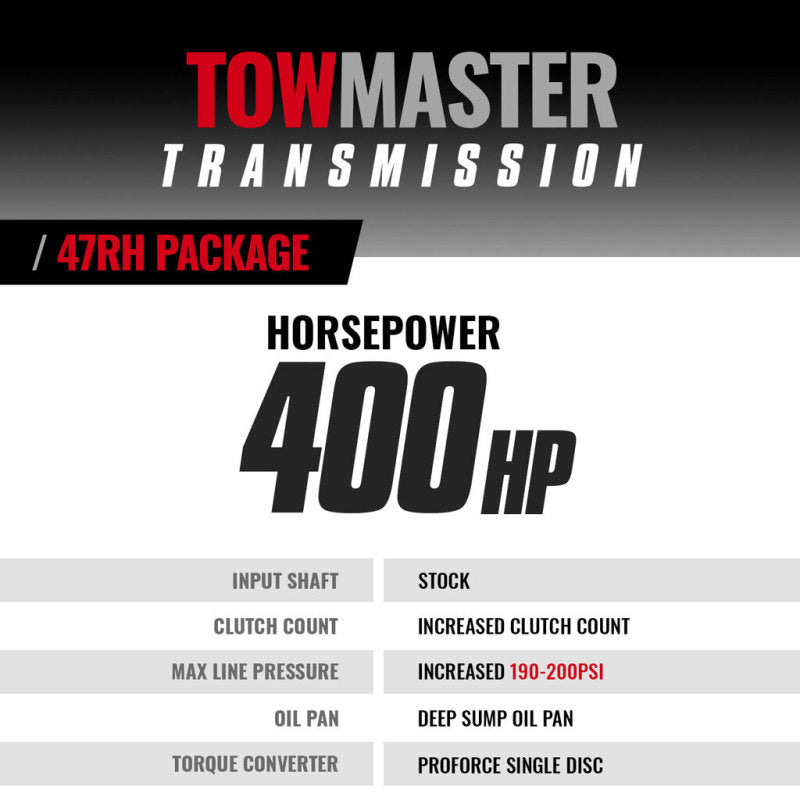

Transmission-Upgraded Valvebody, Increased line pressure to 190-200psi. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 5, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the 'snap' from rapid throttle and high horsepower. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall. Torque Multiplying cast aluminum stators. Lower RPM Response than the stock converter. More efficient operation, less heat and better fuel economy. Stamp-forged steel front cover, furnace brazed fins, up to triple the mount of lockup clutch material. Warranty- 36 Month/150,000 Miles on Parts, 12 Month/24000 miles on Labor.

Transmission Kit; Complete Trans; Incl. Auxiliary Filter/2 QT Extra Capacity Pan; Incl. Complete Torque Converter; Enhanced Stall; Stage 4;

BD Diesel 94-95 Dodge 4WD 47RH Stage 4 Transmission & Converter Package. BD TowMaster Dodge 47RH Trans & Converter Package 1994-1995 4wd. Stock thrust bushings replaced with roller Torrington bearings. BD auxiliary full flow filter kit for extra protection. Up to triple the amount of lock-up clutch material. Pan heat-dissipating fins keep temperature down. BD rigid aluminum heavy duty transmission pan. Cooler line case saver in every transmission. Enhanced Stall - Street/Towing applications. Lower rpm response than the stock converter. Increase The Durability Of Your Drivetrain. Torque multiplying cast aluminum stators. Not warranted for Race or Sled Pull use. TRANS PACKAGE DODGE 1994-1995 47RH 4WD. Every transmission is tested on a dyno. Increased line pressure to 190-200psi. Aluminum HD Deep Transmission Pan. Less heat and better fuel economy. Pan adds 2qt extra oil capacity. Automatic Transmission Assembly. Torque Convertor Enhanced Stall. Stamp-forged steel front cover. Stamped Forged 1 Piece Cover. Clutch Count: OD DIRECT 10. Suggested items: 1041210. More Efficient Operation. High temp Raybestos band. Clutch Count: FORWARD 5. Clutch Count: DIRECT 5. No Race Abuse Covered. Magnetic drain plug. Furnace-brazed fins. Upgraded Valve body. Furnace Brazed Fins. Auto Trans Assembly. Clutch Count: OD 6. TRANS PKG STAGE 4. Billet Band Strut. TORQUE CONVERTOR:. Transmission Kit. TRANSMISSION:

Your drivetrain is all the components responsible for transferring power from your engine and delivering it to the wheels. Drivetrain components are vital to your vehicles operation.

Warning: This product listing contains generic images

WARNING: Cancer & Reproductive Harm. For more information, go to www.P65Warnings.ca.gov

Installation Instructions

1. Click to Download
2. Click to Download
3. Click to Download

The BD name became recognized in 1989, when the company introduced the first exhaust brake for the burgeoning Diesel pick-up truck market. BD's roots, however, actually date back to 1972, when Valley Fuel Injection Ltd. first opened its doors. Today, Valley Fuel Injection (now BD Diesel Truck Service & Performance Center) and BD Diesel Performance are one, with specialty divisions that focus on Diesel power train components.

• 1994 Dodge Ram 2500 Base
• 1995 Dodge Ram 2500 Base
• 1994 Dodge Ram 3500 Base
• 1995 Dodge Ram 3500 Base
