Edelbrock Low Profile Intake Elbow 90mm Throttle Body to Square-Bore - 3848

• About Product
• Additional Details
• About the Brand

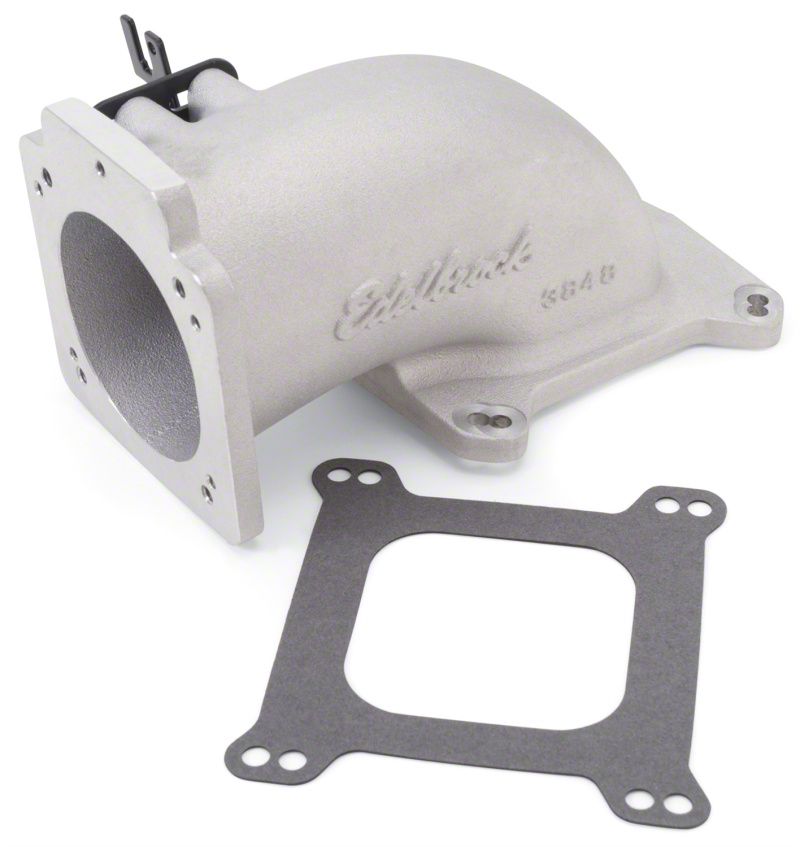

This Edelbrock Low Profile elbow was designed for limited hood clearance applications. This adaptor can be used with our 29085 Victor Jr LS1 but cowl trimming and an SS hood are required. The 3848 Elbow can be used in other square bore (4150 style) manifold applications as well. It can be mounted forward, backward, or sideways on any of our Victor EFI Square bore (4150) style manifolds. Because of its low profile a one inch spacer is required for small or Big Block Chevy forward mount configurations to clear the water neck. It can be used with an LS1 80 mm (must use PN 2737 adaptor) or Edelbrock PN 3869 90mm Universal, or Ford style 75mm throttle bodies. The 3848 adaptor features: Bolt pattern fits LS1, LS2 and Ford 5.0l based throttle bodies, adapts to standard (4150 style) square bore manifolds, Fits manifold either in a forwards, backward, or sideways configuration, The throttle bore center sits 7.00" forward and only 2.00" up from the manifold 4150 flange, The throttle body points downward on a 5 Deg angle. For ultra-low applications out PN 3847 elbow sits 9.00" forward and only .56" above the flange, with a 12 Deg downward throttle body angle.

The Edelbrock PN 3848 EFI Elbow Low Profile Universal 75/85/90mm TB to 4150 Flange

Edelbrock; EFI; Edelbrock EFI; Intake; Intake Elbow; Throttle Body; Throttle Body Intake Elbow; LS; Chevrolet; Chevy; EFI intake Elbow; 3849; High Flow; elbow. Edelbrock Low Profile Intake Elbow 90mm Throttle Body to Square-Bore Flange As-Cast Finish. Throttle Body Intake Elbow #3848 Low Profile; 90mm Opening; Satin Finish. Throttle Body Intake Elbow #3848 Low Profile, 90mm Opening, Satin Finish. Engine Air Intake Deceleration Elbow. Throttle Body Intake Elbow. Throttle Body Adapter. FUEL INJECTION COMPO. As-Cast Finish. { eo : 2in.}. Adapter

Whether its for a full rebuild or some standard maintenance, the proper engine components are needed to make sure your vehicle is running smooth.

Throttle bodies are the main component of your vehicle that regulates the amount of air entering the engine. Since throttle bodies have a butterfly valve, they control the amount of air that enters the intake manifold. If you are looking for more power in your vehicle, consider upgrading to a larger throttle body that allows for more air flow.

NOT CARB-APPROVED. ILLEGAL TO USE OR INSTALL IN CALIFORNIA. IF YOU LIVE IN CA, WE CANNOT SHIP YOU THIS ITEM AND YOU WILL BE CHARGED A 10% CANCELLATION FEE IF YOU ORDER. PLEASE LOOK FOR OTHER PRODUCTS WITH CARB APPROVAL.

Warning: This product listing contains generic images

WARNING: Cancer & Reproductive Harm. For more information, go to www.P65Warnings.ca.gov

Installation Instructions

1. Click to Download
2. Click to Download

Founded in 1938, Torrance-based Edelbrock, LLC is recognized as one of the nation's premier designers, manufacturers and distributor of performance replacement parts for the automotive aftermarket. Edelbrock produces their core products in the United States of America using state-of-the-art equipment in their world class manufacturing facilities. Edelbrock, LLC encompasses five locations in Southern California and one location in North Carolina totaling more than 500,000 square feet.
