ICON 2010+ Toyota 4Runner 1-3in Rear 2.5 Series Shocks VS - 57810EP

• About Product
• Additional Details
• About the Brand
• Vehicle Fitment

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

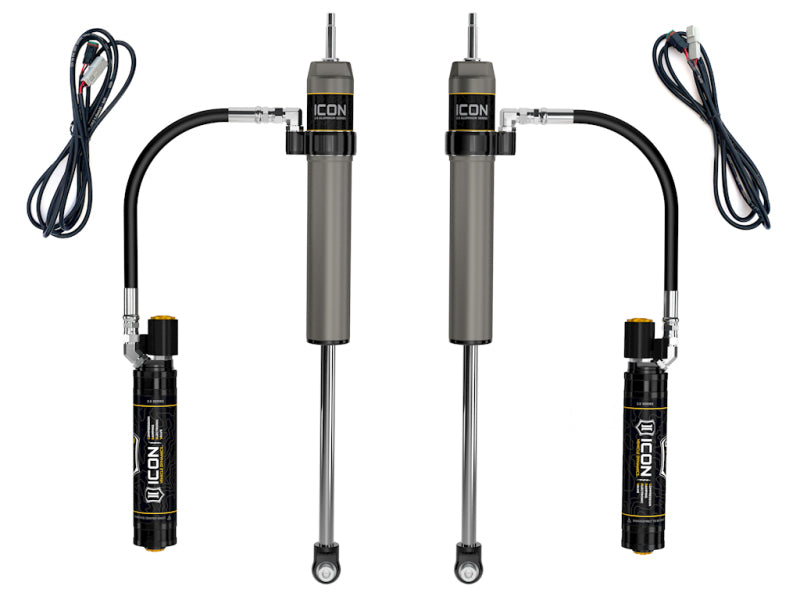

ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs with CDEV and are 100% rebuildable/revalveable.

ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC). One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road. TECH NOTE: Vehicles equipped with Kinetic Dynamic Suspension System (KDSS) also require ICON rear track bar part numer 54200. ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression. One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish. TECH NOTE: Also requires installation of IIC kit (Part # 53504) and CDEV front coilovers (Part # 58747E). Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range. Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use. ICON 2010+ Toyota 4Runner 1-3in Rear 2.5 Series Shocks VS RR CDEV - Pair. PTFE lined spherical bearings and application specific mounting hardware. TECH NOTE: Only compatible with models equipped with 4.0L V6 engine. 7/8” diameter induction hardened, chrome plated shock shaft. Nitrogen charged monotube design with piggyback reservoir. TECH NOTE: Compatible with 1-3" of rear lift over stock. 6061 aircraft grade aluminum CNC machined components. 10-UP 4RUNNER 1-3" REAR 2.5 VS RR CDEV PAIR. 10-24 4RUNNER 1-3" REAR 2.5 VS RR CDEV PAIR. 10-UP 4RUNNER 1-3" 2.5 RR CDEV PAIR. Suspension Shock Absorber Set. SHOCK ABSORBER PAIR. 2.5 SHOCKS W/ CDEV. 100% Revalveable. 100% Rebuildable. 57810EP

Suspension components are key to making sure your car is riding smoothly on or off the road. With upgraded suspension components, you can unlock the full potential of your vehicles performance.

It is recommended that you replace the shocks and struts of your vehicle every 50,000 to 100,000 miles. Replacing your shocks and struts will help reduce your braking distance and improve the overall ride quality of your vehicle. If you are doing some aggressive driving, it is recommended that you upgrade your shocks and struts to a stiffer setup to help enhance the performance of your vehicle.

Warning: This product listing contains generic images

WARNING: Cancer & Reproductive Harm. For more information, go to www.P65Warnings.ca.gov

Installation Instructions

1. Click to Download

<p>ICON Vehicle Dynamics is a premier performance suspension manufacturer that specializes in aftermarket suspension components for trucks, SUVs, and off-road suspension development. The company’s business is customer-driven, technology-influenced, engineering-oriented, and focuses on world-class manufacturing processes and techniques. Led by head engineer and SCORE champion driver Dylan Evans, ICON Vehicle Dynamics has the unique qualities to design and build the highest quality suspension components and test them in both real-world applications as well as race conditions.</p>

• 2010 Toyota 4Runner SR5
• 2010 Toyota 4Runner Limited
• 2010 Toyota 4Runner Trail ( door , HP Cylinder L, speed )
• 2011 Toyota 4Runner Limited
• 2011 Toyota 4Runner SR5
• 2011 Toyota 4Runner Trail ( door , HP Cylinder L, speed )
• 2012 Toyota 4Runner Limited
• 2012 Toyota 4Runner SR5
• 2012 Toyota 4Runner Trail ( door , HP Cylinder L, speed )
• 2013 Toyota 4Runner Limited
• 2013 Toyota 4Runner SR5
• 2013 Toyota 4Runner Trail ( door , HP Cylinder L, speed )
• 2014 Toyota 4Runner Limited
• 2014 Toyota 4Runner SR5
• 2014 Toyota 4Runner Trail ( door , HP Cylinder L, speed )
• 2015 Toyota 4Runner Limited
• 2015 Toyota 4Runner SR5
• 2015 Toyota 4Runner Trail ( door , HP Cylinder L, speed )
• 2015 Toyota 4Runner TRD Pro ( door , HP Cylinder L, speed )
• 2016 Toyota 4Runner Limited
• 2016 Toyota 4Runner SR5
• 2016 Toyota 4Runner Trail ( door , HP Cylinder L, speed )
• 2016 Toyota 4Runner TRD Pro ( door , HP Cylinder L, speed )
• 2017 Toyota 4Runner Limited
• 2017 Toyota 4Runner SR5
• 2017 Toyota 4Runner TRD Pro
• 2017 Toyota 4Runner TRD Off-Road
• 2018 Toyota 4Runner SR5
• 2018 Toyota 4Runner Limited
• 2018 Toyota 4Runner TRD Pro ( door , HP Cylinder L, speed )
• 2018 Toyota 4Runner TRD Off-Road ( door , HP Cylinder L, speed )
• 2019 Toyota 4Runner Limited
• 2019 Toyota 4Runner TRD Pro ( door , HP Cylinder L, speed )
• 2019 Toyota 4Runner TRD Off-Road ( door , HP Cylinder L, speed )
• 2019 Toyota 4Runner SR5
• 2018 Toyota 4Runner SR5 Premium
• 2018 Toyota 4Runner TRD Off-Road Premium ( door , HP Cylinder L, speed )
• 2019 Toyota 4Runner SR5 Premium
• 2019 Toyota 4Runner TRD Off-Road Premium ( door , HP Cylinder L, speed )
• 2020 Toyota 4Runner TRD Pro ( door , HP Cylinder L, speed )
• 2020 Toyota 4Runner TRD Off-Road Premium ( door , HP Cylinder L, speed )
• 2020 Toyota 4Runner SR5
• 2020 Toyota 4Runner TRD Off-Road ( door , HP Cylinder L, speed )
• 2020 Toyota 4Runner Limited
• 2020 Toyota 4Runner SR5 Premium
• 2020 Toyota 4Runner Nightshade
• 2020 Toyota 4Runner Venture ( door , HP Cylinder L, speed )
• 2021 Toyota 4Runner Venture
• 2021 Toyota 4Runner TRD Pro
• 2021 Toyota 4Runner TRD Off-Road Premium
• 2021 Toyota 4Runner TRD Off-Road
• 2021 Toyota 4Runner SR5 Premium
• 2021 Toyota 4Runner SR5
• 2021 Toyota 4Runner Nightshade
• 2021 Toyota 4Runner Limited
• 2021 Toyota 4Runner Trail
• 2022 Toyota 4Runner TRD Pro
• 2022 Toyota 4Runner TRD Off-Road Premium
• 2022 Toyota 4Runner TRD Off-Road
• 2022 Toyota 4Runner Trail
• 2022 Toyota 4Runner SR5 Premium
• 2022 Toyota 4Runner SR5
• 2022 Toyota 4Runner Limited
• 2022 Toyota 4Runner TRD Sport
• 2023 Toyota 4Runner SR5
• 2023 Toyota 4Runner 40th Anniversary Edition
• 2023 Toyota 4Runner Limited
• 2023 Toyota 4Runner SR5 Premium
• 2023 Toyota 4Runner TRD Off-Road
• 2023 Toyota 4Runner TRD Off-Road Premium
• 2023 Toyota 4Runner TRD Pro
• 2023 Toyota 4Runner TRD Sport
• 2024 Toyota 4Runner Limited
• 2024 Toyota 4Runner TRD Pro
• 2024 Toyota 4Runner TRD Sport
• 2024 Toyota 4Runner TRD Off-Road
• 2024 Toyota 4Runner TRD Off-Road Premium
• 2024 Toyota 4Runner SR5
• 2024 Toyota 4Runner SR5 Premium
